EFA 155 SVC2 Network Card Settings and Configuration







EFA CORPORATION

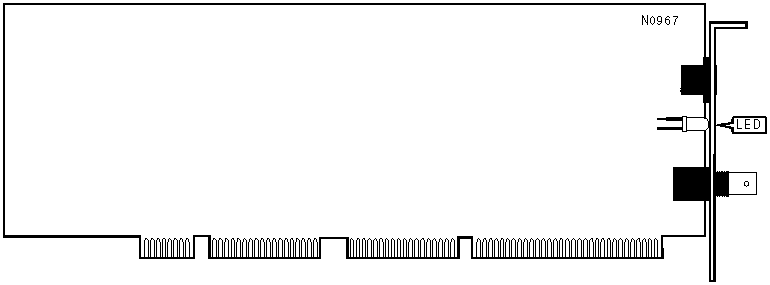

EFA 155 SVC2

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

VESA local bus

Topology

Linear Bus

Star

Wiring Type

RG-58A/U 50ohm coaxial

Unshielded twisted pair

Boot ROM

Available (location unidentified)

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED

Green

Blinking

Data is being transmitted/received

LED

Green

On

Network connection is good

LED

Green

Off

Network connection is broken
