EFA 150 SVC Network Card Settings and Configuration







EFA CORPORATION

EFA 150 SVC

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

VESA local bus

Topology

Linear Bus

Star

Wiring Type

RG-58A/U 50ohm coaxial

Unshielded twisted pair

Boot ROM

Available (Location unidentified)

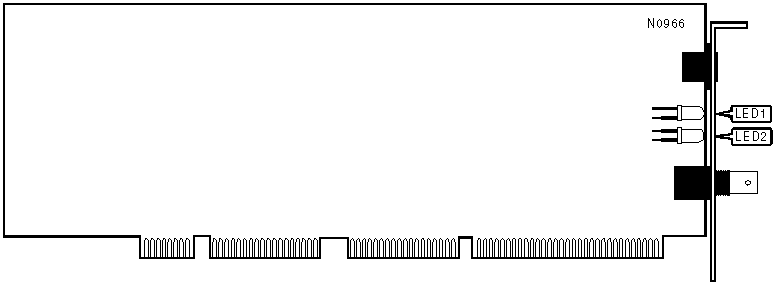

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Orange

On

Data is being transmitted/received

LED!

Orange

Off

Data is not being transmitted/received

LED2

Green

On

Network connection is good

LED2

Green

Off

Network connection is broken
