ET-4000T Network Card Settings and Configuration
EDIMAX COMPUTER COMPANY
ET-4000T
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | RJ-45 Unshielded twisted pair |
Data Bus | External |

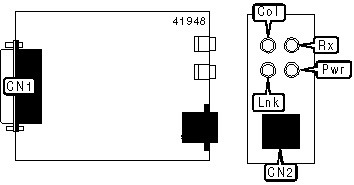

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | RJ-45 UTP connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
Lnk | Green | On | UTP link is good |
Lnk | Green | Off | UTP link is broken |
Col | Orange | Blinking | Collision detected on network |
Col | Orange | Off | No collision detected on network |
Pwr | Yellow | On | Power is on |
Pwr | Yellow | Off | Power is off |
Rx | Red | Blinking | Data is being received |
Rx | Red | Off | Data is not being received |
