ET-4000FL Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Fiber optic cable (ST)
Data Bus	External

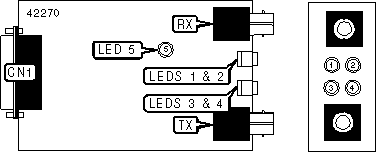

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Fiber optic connector (ST) - transmit	TX
Fiber optic connector (ST) - receive	RX

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED 1	Orange	On	Fiber optic link is good
LED 1	Orange	Off	Fiber optic link is broken
LED 2	Red	Blinking	Collision detected on network
LED 2	Red	Off	No collision detected on network
LED 3	Green	Blinking	Data is being received
LED 3	Green	Off	Data is not being received
LED 4	Yellow	Blinking	Data is being transmitted
LED 4	Yellow	Off	Data is not being transmitted
LED 5	Green	On	Power is on
LED 5	Green	Off	Power is off
