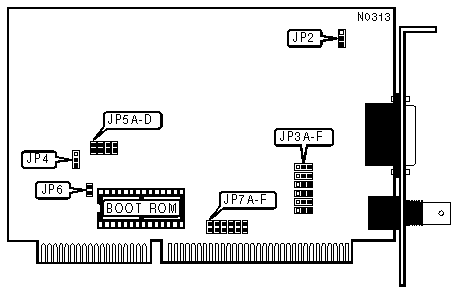

EN-3360 (Version 2.2) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

CABLE TYPE
Type		JP2	JP3A-JP3F
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 closed	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed	Pins 1 & 2 closed

COMPATIBILITY MODE
Setting		JP4
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed
Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing,

BOOT ROM ADDRESS
Address		JP5A	JP5B	JP5C	JP5D
	C0000h	Closed	Closed	Closed	Closed
	C4000h	Open	Closed	Closed	Closed
»	C8000h	Closed	Open	Closed	Closed
	CC000h	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Open	Closed
	D4000h	Open	Closed	Open	Closed
	D8000h	Closed	Open	Open	Closed
	DC000h	Open	Open	Open	Closed

BOOT ROM
Setting		JP6
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS
Address		JP7A	JP7B
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

INTERRUPT SETTINGS
IRQ		JP7C	JP7D	JP7E	JP7F
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed
