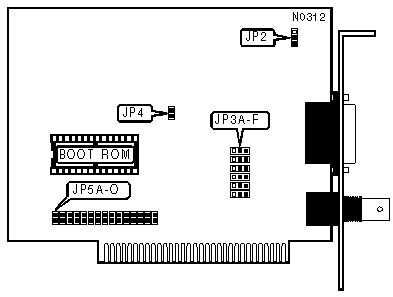

EN-2360 (Version 2.0) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

CABLE TYPE
Type		JP2	JP3A-JP3F
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed	Pins 1 & 2 closed

BOOT ROM
Setting		JP4
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS
Address		JP5A	JP5B	JP5C
»	300h	Closed	Closed	Closed
	320h	Closed	Closed	Open
	340h	Closed	Open	Closed
	360h	Closed	Open	Open

INTERRUPT SETTINGS
IRQ		JP5D	JP5E	JP5F	JP5G
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

DMA CHANNEL
Channel		JP5H	JP5I	JP5J	JP5K
»	Disabled	Open	Open	Open	Open
	DMA1	Closed	Open	Closed	Open
	DMA3	Open	Closed	Open	Closed

BOOT ROM ADDRESS
Address		JP5L	JP5M	JP5N	JP5O
	C0000h	Closed	Closed	Closed	Closed
	C4000h	Open	Closed	Closed	Closed
»	C8000h	Closed	Open	Closed	Closed
	CC000h	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Open	Closed
	D4000h	Open	Closed	Open	Closed
	D8000h	Closed	Open	Open	Closed
	DC000h	Open	Open	Open	Closed
