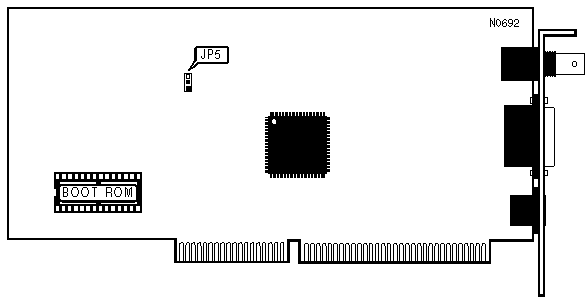

NET-700EC/NET-700ET/NET-700ECT Network Card Settings and Configuration
DIAMOND FLOWER, INC.
NET-700EC/NET-700ET/NET-700ECT
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
BIOS RE-CONFIGURATION SELECT | ||
Setting | JP5 | |
| » | Normal operation | Pins 1 & 2 closed |
Reconfigure BIOS | Pins 2 & 3 closed | |
MISCELLANEOUS TECHNICAL NOTE |
Note: The NET-700EC model comes equipped with BNC and AUI connectors. The NET-700ET comes with AUI and RJ-45 connectors, and the NET-700ECT comes with AUI, BNC, and RJ-45 connectors. |
