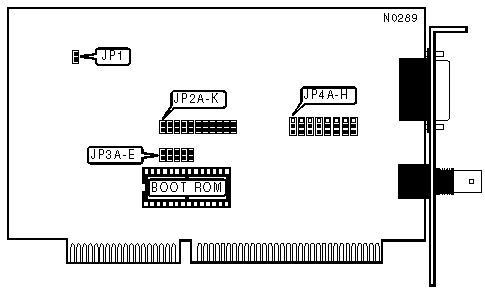

NET-400 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG--58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

DATA I/O TRANSFER MODE
Mode		JP1
»	Normal	Open
	Enhanced	Closed
Note:Enhanced mode can speed data transfer speeds by up to 20%.

CABLE TYPE
Type		JP4A-4H
»	RG--58A/U 50ohm coaxial	Pins 2 & 3 Closed
	AUI transceiver via DB-15 port	Pins 1 & 2 Closed

INTERRUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D
	2	Open	Open	Open	Closed
»	3	Open	Open	Closed	Open
	4	Open	Closed	Open	Open
	5	Closed	Open	Open	Open

I/O BASE ADDRESS
Address		JP2I	JP2J
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

BOOT ROM
Setting		JP2K
»	Disabled	Open
	Enabled	Closed

BASE MEMORY ADDRESS
Address	JP3A	JP3B	JP3C	JP3D	JP3E
C0000h	Closed	Closed	Closed	Closed	Closed
C2000h	Open	Closed	Closed	Closed	Closed
C4000h	Closed	Open	Closed	Closed	Closed
C6000h	Open	Open	Closed	Closed	Closed
C8000h	Closed	Closed	Open	Closed	Closed
CA000h	Open	Closed	Open	Closed	Closed
CC000h	Closed	Open	Open	Closed	Closed
CE000h	Open	Open	Open	Closed	Closed
D0000h	Closed	Closed	Closed	Open	Closed
D2000h	Open	Closed	Closed	Open	Closed
D4000h	Closed	Open	Closed	Open	Closed
D6000h	Open	Open	Closed	Open	Closed
D8000h	Closed	Closed	Open	Open	Closed
DA000h	Open	Closed	Open	Open	Closed
DC000h	Closed	Open	Open	Open	Closed
DE000h	Open	Open	Open	Open	Closed
E0000h	Closed	Closed	Closed	Closed	Open
E2000h	Open	Closed	Closed	Closed	Open
E4000h	Closed	Open	Closed	Closed	Open
E6000h	Open	Open	Closed	Closed	Open
E8000h	Closed	Closed	Open	Closed	Open
EA000h	Open	Closed	Open	Closed	Open
EC000h	Closed	Open	Open	Closed	Open
EE000h	Open	Open	Open	Closed	Open
F0000h	Closed	Closed	Closed	Open	Open
F2000h	Open	Closed	Closed	Open	Open

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP2E-JP2H	Open
