DP2100 Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Unidentified
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

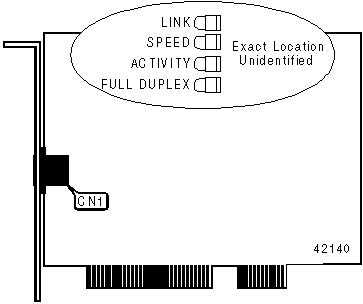

CONNECTIONS
Function	Label
RJ-45 connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Green	On	UTP link is good
LINK	Green	Off	UTP link is broken
SPEED	Green	On	Data is being transmitted/received @ 100Mbps
SPEED	Green	Off	Data is not being transmitted/received @ 10Mbps
ACTIVITY	Yellow	Blinking	Data is being transmitted
ACTIVITY	Yellow	Off	Data is not being transmitted
FULL DUPLEX	Yellow	On	Polarity reversed (10BASE-T only)
FULL DUPLEX	Yellow	Off	Polarity normal (10BASE-T only)
