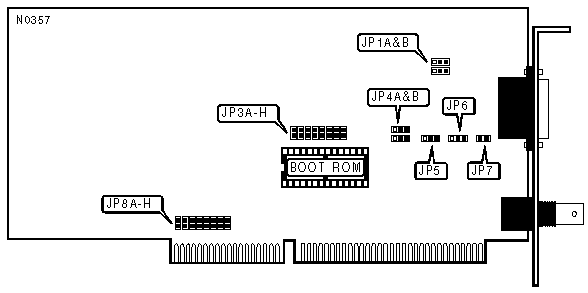

EW-2016 Network Card Settings and Configuration
DANPEX CORPORATION
EW-2016
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus |
Wiring Type | RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Not available |
CABLE TYPE | ||
Type | JP1A & JP1B | |
| » | RG58A/U 50ohm coaxial | Pins 1 & 2 closed |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | |
I/O BASE ADDRESS | |||||
Address | JP3A | JP3B | JP3C | JP3D | |
200h | Closed | Closed | Closed | Closed | |
220h | Closed | Closed | Closed | Open | |
240h | Closed | Closed | Open | Closed | |
260h | Closed | Closed | Open | Open | |
| » | 280h | Closed | Open | Closed | Closed |
2A0h | Closed | Open | Closed | Open | |
2C0h | Closed | Open | Open | Closed | |
2E0h | Closed | Open | Open | Open | |
300h | Open | Closed | Closed | Closed | |
320h | Open | Closed | Closed | Open | |
340h | Open | Closed | Open | Closed | |
360h | Open | Closed | Open | Open | |
380h | Open | Open | Closed | Closed | |
3A0h | Open | Open | Closed | Open | |
3C0h | Open | Open | Open | Closed | |
3E0h | Open | Open | Open | Open | |
BOOT ROM | ||
Setting | JP3H | |
| » | Enabled | Closed |
Disabled | Open | |
BOOT ROM ADDRESS AND SIZE | ||||||
ROM Address | Boot ROM Size | JP3E | JP3F | JP3G | JP4A & JP4B | |
C8000h | 16KB | Closed | Open | Closed | Pins 1 & 2 closed | |
C8000h | 32KB | Closed | Open | Closed | Pins 2 & 3 closed | |
CC000h | 16KB | Open | Closed | Open | Pins 1 & 2 closed | |
| » | D0000h | 16KB | Open | Closed | Closed | Pins 1 & 2 closed |
D0000h | 32KB | Open | Closed | Closed | Pins 2 & 3 closed | |
D8000h | 16KB | Open | Open | Closed | Pins 1 & 2 closed | |
DC000h | 16KB | Open | Open | Open | Pins 1 & 2 closed | |
OPERATING SYSTEM SELECT | ||
Operating system | JP5 | |
| » | DOS | Pins 1 & 2 closed |
OS/2 | Pins 2 & 3 closed | |
ONBOARD TERMINATOR | ||
Setting | JP7 | |
| » | Disabled | Open |
Enabled | Closed | |
Note:If the card is the last in the line of network cards, the onboard terminator may be enabled instead of using an external terminator | ||
INTERRUPT REQUEST | |||||||||
IRQ | JP8A | JP8B | JP8C | JP8D | JP8E | JP8F | JP8G | JP8H | |
2/9 | Open | Open | Open | Open | Closed | Open | Open | Open | |
| » | 3 | Closed | Open | Open | Open | Open | Open | Open | Open |
4 | Open | Closed | Open | Open | Open | Open | Open | Open | |
5 | Open | Open | Closed | Open | Open | Open | Open | Open | |
7 | Open | Open | Open | Closed | Open | Open | Open | Open | |
10 | Open | Open | Open | Open | Open | Closed | Open | Open | |
11 | Open | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Open | Closed | |
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
JP6 | Unused |
