EN-7000P3 Network Card Settings and Configuration
DANPEX CORPORATION
EN-7000P3
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 32-bit VESA |
Topology | Star/Linear Bus |
Wiring Type | AUI transceiver via DB-15 port RG58A/U 50ohm coaxial Unshielded twisted pair |
Boot ROM | Available |
CONNECTIONS | |

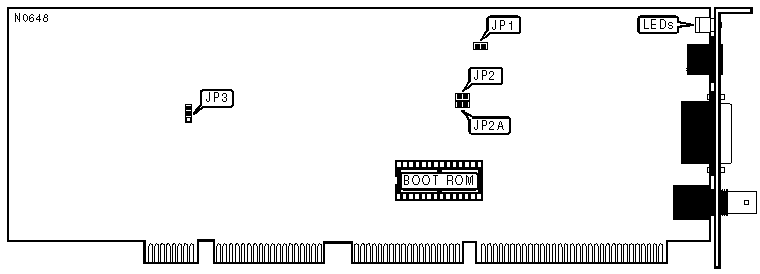

Purpose | Location |
Status LED connector | JP1 |
CABLE TYPE | |||
Type | JP2 | JP2A | |
» | AUI transceiver via DB-15 port | Closed | Open |
| RG58A/U 50ohm coaxial or Twisted Pair | Open | Closed |
CPU SPEED | ||
Speed | JP3 | |
» | > 33MHz | Pins 1 & 2 closed |
| < 33MHz | Pins 2 & 3 closed |
