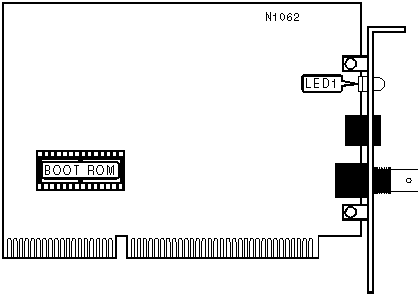

EN-2420P2 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Network connection is good
LED1	Blinking	Data is being transmitted/received
LED1	Off	Network connection is broken
