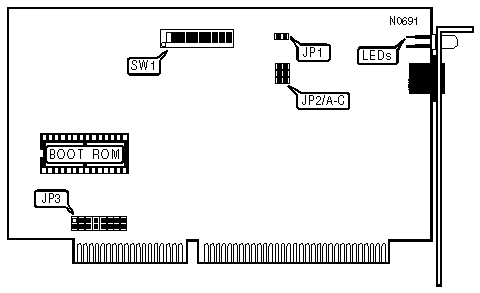

EN-2400T Network Card Settings and Configuration

DANPEX CORPORATION

EN-2400T

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Linear Bus, Star
Wiring Type
Unshielded twisted pair
Boot ROM
Available

UTP CONFIGURATION
Type
JP2/A
JP2/B
JP2/C
»
Unshielded twisted pair
Open
Open
Closed

BASE I/O ADDRESS/INTERRUPT SELECT
Address
IRQ
SW1/4
SW1/5
SW1/6
JP3
»
300h
IRQ3
Off
Off
Off
Pins 1 & 2 closed

320h
IR/FONT>
On
Off
On
Pins 7 & 8 closed

340h
IRQ4
On
On
Off
Pins 3 & 4 closed

360h
IRQ5
On
On
On
Pins 5 & 6 closed

300h
IR/FONT>
Off
Off
Off
Pins 7 & 8 closed

320h
IRQ3
On
Off
On
Pins 1 & 2 closed

340h
IRQ5
On
On
Off
Pins 5 & 6 closed

360h
IRQ4
On
On
On
Pins 3 & 4 closed

300h
IRQ4
Off
Off
Off
Pins 3 & 4 closed

320h
IRQ5
On
Off
On
Pins 5 & 6 closed

340h
IR/FONT>
On
On
Off
Pins 7 & 8 closed

BASE I/O ADDRESS/INTERRUPT SELECT
Address
IRQ
SW1/4
SW1/5
SW1/6
JP3
360h
IRQ3
On
On
On
Pins 1 & 2 closed
300h
IRQ10
Off
Off
Off
Pins 9 & 10 closed
320h
IRQ12
On
Off
On
Pins 13 & 14 closed
340h
IRQ15
On
On
Off
Pins 15 & 16 closed
360h
IRQ10
On
On
On
Pins 9 & 10 closed
300h
IRQ12
Off
Off
Off
Pins 13 & 14 closed
320h
IRQ15
On
Off
On
Pins 15 & 16 closed
340h
IRQ10
On
On
Off
Pins 9 & 10 closed
360h
IRQ12
On
On
On
Pins 13 & 14 closed
300h
IRQ15
Off
Off
Off
Pins 15 & 16 closed
320h
IRQ10
On
Off
On
Pins 9 & 10 closed
340h
IRQ12
On
On
Off
Pins 13 & 14 closed
360h
IRQ15
On
On
On
Pins 15 & 16 closed

ROM ADDRESS CONFIGURATION
Memory Address
I/O Address
IRQ
SW1/7
SW1/8
SW1/9
SW1/10
»
C800h
300h
IRQ3
Off
On
Off
Off

CC00h
320h
IR/FONT>
Off
On
Off
On

D000h
340h
IRQ4
Off
On
On
Off

D400h
360h
IRQ5
Off
On
On
On

I/O TIMING
Setting
SW1/2
»
Normal IO16
Off

Late IO16
On

IOCHRDY
Setting
SW1/1
»
Normal IOCHRDY
Off

Early IOCHRDY
On

FACTORY CONFIGURED SETTINGS
Switch
Setting
SW1/3
Off

CONNECTIONS
Purpose
Location
JP1
LAN station LED connector

DIAGNOSTIC LED
LED
Color
Status
Condition
LED1
Green
Off
Data is not being transmitted/received
LED1
Green
Blinking
Data is being transmitted/received
LED2
Green
Off
Unshielded twisted pair not connected
LED2
Green
Blinking
Unshielded twisted pair connected
