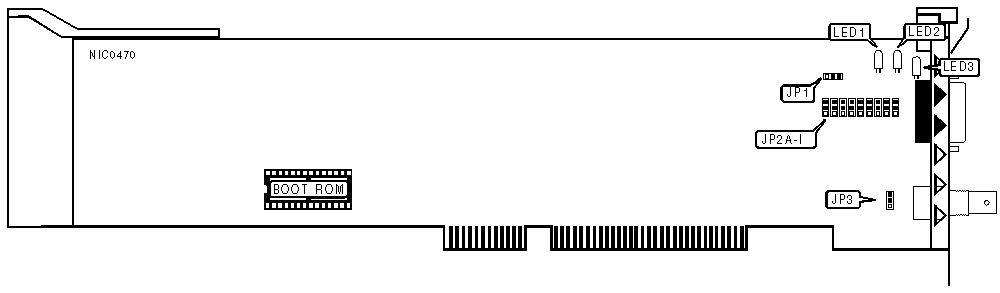

EN/2 Network Card Settings and Configuration
DANPEX CORPORATION
EN/2
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit MCA |
Topology | Linear bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
CABLE TYPE | ||
Type | JP2B - JP2I | |
| » | RG-58A/U 50ohm coaxial | Pins 1 & 2 closed |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | |
ONBOARD TERMINATOR | ||
Setting | JP3 | |
| » | Disabled | Pins 1 & 2 closed |
Enabled | Pins 2 & 3 closed | |
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead of an external terminator | ||
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
JP1 | Unused |
JP2A | Pins 2 & 3 closed |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Data is being transmitted |
LED1 | Off | Data is not being transmitted |
LED2 | On | Collision detected on network |
LED2 | Off | Normal operation |
LED3 | On | Data is being received |
LED3 | Off | Data is not being received |
