FASTLINE-PCI UTP QUATTRO (10/100BASE TX) Network Card Settings and Configuration
COMPU-SHACK PRODUCTION, GMBH
FASTLINE-PCI UTP QUATTRO (10/100BASE TX)
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10/100Mbps (20/200Mbps full duplex) |
Topology | Star |
Wiring Type | RJ-45 Unshielded twisted pair |
Data Bus | 32-bit PCI |

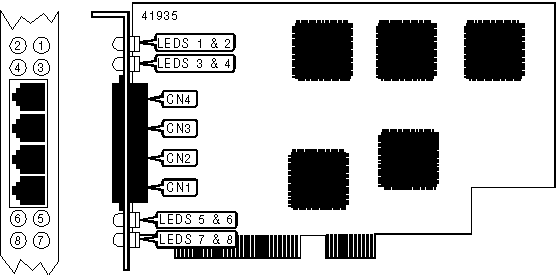

CONNECTIONS | |||
Function | Label | Function | Label |
RJ-45 connector port A | CN1 | RJ-45 connector port C | CN3 |
RJ-45 connector port B | CN2 | RJ-45 connector port D | CN4 |
DIAGNOSTIC LED(S) | ||||
LED | Color | Status | Port | Condition |
LED1 | Yellow | On | D | Data is being transmitted/received |
LED1 | Yellow | Off | D | Data is not being transmitted/received |
LED2 | Green | On | D | UTP link is good |
LED2 | Green | Off | D | UTP link is broken |
LED3 | Yellow | On | C | Data is being transmitted/received |
LED3 | Yellow | Off | C | Data is not being transmitted/received |
LED4 | Green | On | C | UTP link is good |
LED4 | Green | Off | C | UTP link is broken |
LED5 | Yellow | On | B | Data is being transmitted/received |
LED5 | Yellow | Off | B | Data is not being transmitted/received |
LED6 | Green | On | B | UTP link is good |
LED6 | Green | Off | B | UTP link is broken |
LED7 | Yellow | On | A | Data is being transmitted/received |
LED7 | Yellow | Off | A | Data is not being transmitted/received |
LED8 | Green | On | A | UTP link is good |
LED8 | Green | Off | A | UTP link is broken |
