CS-BASELINE-PCI UTP/FO, CS-MORITZ-PCI UTP/FO Network Card Settings and Configuration
COMPU-SHACK PRODUCTION, GMBH
CS-BASELINE-PCI UTP/FO, CS-MORITZ-PCI UTP/FO
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair Fiber optic cable |
Data Bus | 32-bit PCI |

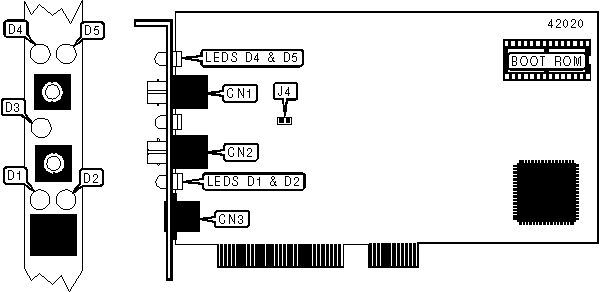

CONNECTIONS | |||
Function | Label | Function | Label |
Fiber-optic connector | CN1 | UTP connector | CN3 |
Fiber-optic connector | CN2 | ||
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
50 Ohm termination activated | J4 | Closed |
50 Ohm termination not activated | J4 | Open |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | UTP link is good |
LED1 | Green | Off | UTP link is broken |
LED2 | Yellow | On | Data is being transmitted/received |
LED2 | Yellow | Off | Data is not being transmitted/received |
LED3 | Red | On | Jabber signal detected |
LED3 | Red | Off | No jabber signal detected |
LED4 | Yellow | Blinking | Collision detected on network |
LED4 | Yellow | Off | No collision detected on network |
LED5 | Green | On | Fiber-optic link is good |
LED5 | Green | Off | Fiber-optic link is broken |
