RL2000A-PNP TP Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	16-bit ISA

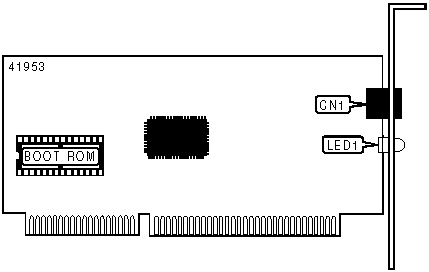

CONNECTIONS
Function	Label
UTP connector	CN1

DIAGNOSTIC LED(S)

Note: Function of LED is unidentified.
