RL2000 PCI Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	32KB
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI

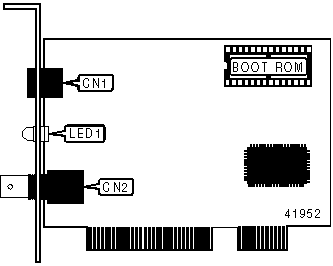

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	RG-58A/U connector	CN2

DIAGNOSTIC LED(S)

Note: Function of LED is unidentified.
