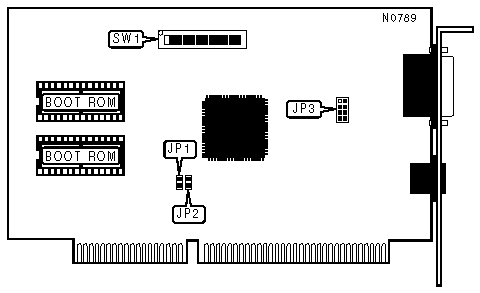

CN2000T REV. A Network Card Settings and Configuration

NIC Type	Token-Ring
Transfer Rate	4/16Mbps
Data Bus	16-bit ISA
Topology	Ring
Wiring Type	Shielded twisted pair (AUI port) Unshielded twisted pair (RJ-45 jack)
Boot ROM	Available

BASE MEMORY ADDRESS SELECT
ROM Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
»	C0000H - C1FFFh	On	Off	Off	Off	Off	Off
	C2000H - C3FFFh	On	Off	Off	Off	Off	On
	C4000H - C5FFFh	On	Off	Off	Off	On	Off
	C6000H - C7FFFh	On	Off	Off	Off	On	On
	C8000H - C9FFFh	On	Off	Off	On	Off	Off
	CA000H - CBFFFh	On	Off	Off	On	Off	On
	CC000H - CDFFFh	On	Off	Off	On	On	Off
	CE000H - CFFFFh	On	Off	Off	On	On	On
	D0000H - D1FFFh	On	Off	On	Off	Off	Off
	D2000H - D3FFFh	On	Off	On	Off	Off	On
	D4000H - D5FFFh	On	Off	On	Off	On	Off
	D6000H - D7FFFh	On	Off	On	Off	On	On
	D8000H - D9FFFh	On	Off	On	On	Off	Off
	DA000H - DBFFFh	On	Off	On	On	Off	On
	DC000H - CDFFFh	On	Off	On	On	On	Off
	DE000H - DFFFFh	On	Off	On	On	On	On

PAGE RAM CONFIGURATION
Size		SW1/9	SW1/10
»	16KB	Off	On
	8KB	Off	Off
	32KB	On	Off
	64KB	On	On

CABLE TYPE
Type		JP3
»	Shielded twisted pair (AUI port)	Open
	Unshielded twisted pair (RJ-45 jack)	Closed

NETWORK SPEED
Speed		SW1/11
»	16Mbps	On
	4Mbps	Off

I/O ADDRESS SELECT
Address	SW1/12
A20H - A23H (RAM address - D8000)	On
A24H - A27H (RAM address - D4000)	Off

INTERRUPT SELECT
IRQ		SW1/7	SW1/8
»	IRQ2	Closed	Open
	IRQ3	Open	Closed
	IRQ6	Open	Open
	IRQ7	Open	Open

BIT SIZE SELECT
Size		JP1	JP2
»	8- bits	Open	Open
	16- bits	Closed	Closed
