CN2000T/2 REV. A Network Card Settings and Configuration
CNET TECHNOLOGY, INC.
CN2000T/2 REV. A
NIC Type: | Token-Ring |
Transfer Rate: | 4/16Mbps |
Data Bus: | 16-bit ISA |
Topology: | Ring |
Wiring Type | Shielded twisted pair Unshielded twisted pair |
Boot ROM | Available |

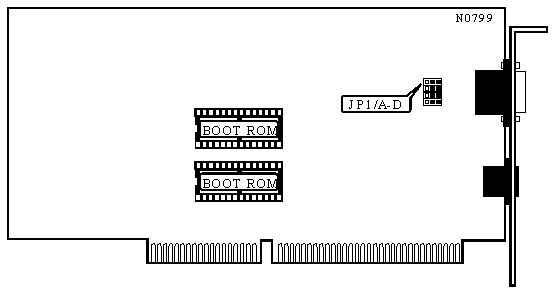

CABLE TYPE - JP1 | ||||
Type | Jumper A | Jumper B | Jumper C | Jumper D |
Unshielded Twisted Pair | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
Shielded Twisted Pair | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
