CN1000T/2 Network Card Settings and Configuration

CNET TECHNOLOGY, INC.

CN1000T/2

NIC Type
Token Ring
Transfer Rate
4/16Mbps
Data Bus
16-bit MCA
Topology
Ring
Wiring Type
Shielded twisted pair
Unshielded twisted pair
Boot ROM
Available

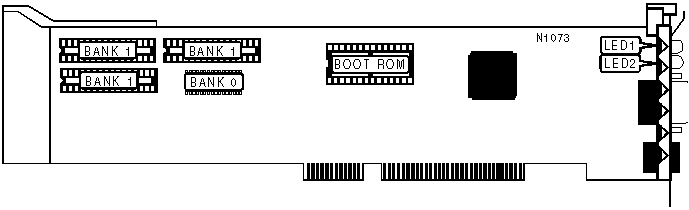

DRAM CONFIGURATION
Size
Bank 0
Bank 1
128KB
(1) 128K x 8
NONE
512KB
(1) 128K x 8
(3) 128K x 8

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
On
Node is inserted in Ring
LED1
Red
Off
Node is not inserted in Ring
LED2
Green
Blinking
Data is being transmitted/received
LED2
Green
Off
Data is not being transmitted/received
