PRO-110 Network Card Settings and Configuration
CNET TECHNOLOGY, INC.
PRO-110
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 10/200Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | 32-bit PCI |
CONNECTIONS | |

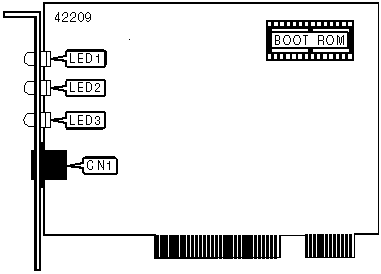

Function | Label |
UTP via RJ-45 connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Valid 100BaseTX link detected |
LED1 | Green | Off | Valid 100BaseTX link not detected |
LED2 | Green | On | Valid 10BaseT link detected |
LED2 | Green | Off | Valid 10BaseT link not detected |
LED3 | Yellow | Blinking | Data is being transmitted/received |
LED3 | Yellow | Off | Data is not being transmitted/received |
