BOCALANCARD (BEN120) Network Card Settings and Configuration
BOCA RESEARCH, INC.

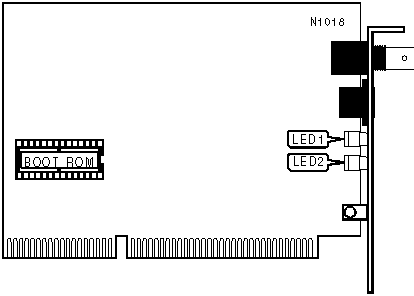

BOCALANCARD (BEN120)
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Red | On | Normal polarity |
LED2 | Red | Off | Reversed polarity |
Note: LED2 is programmable to show transmit, receive, polarity, jabber and collision. Polarity is default | |||
