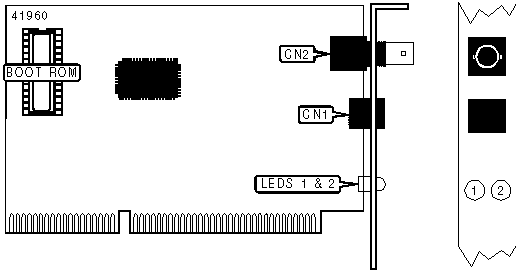

BOCALANCARD 2000 PLUS COMBO (BEN400I2) Network Card Settings and Configuration

BOCA RESEARCH, INC.

BOCALANCARD 2000 PLUS COMBO (BEN400I2)

Card Type
Network Interface Card
NIC Type
Ethernet
Boot ROM
Available
Network Transfer Rate
10Mbps
Topology
Linear Bus, Star
Wiring Type
Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus
16-bit ISA

CONNECTIONS
Function
Label
Function
Label
UTP connector
CN1
RG-58A/U connector
CN2

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Data is being received
LED1
Green
Off
Data is not being received
LED2
Red
On
Data is being transmitted
LED2
Red
Off
Data is not being transmitted
