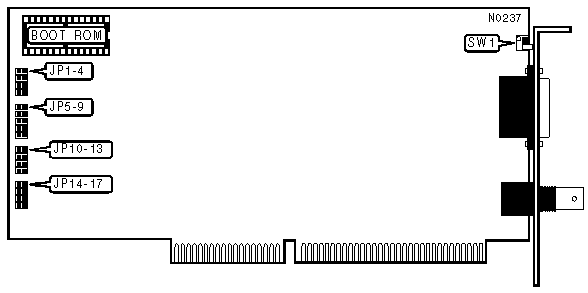

6510, LE037-C Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		JP1	JP2	JP3	JP4
	300h	Closed	Open	Open	Open
	320h	Open	Closed	Open	Open
	340h	Open	Open	Closed	Open
»	360h	Open	Open	Open	Closed

BOOT ROM ADDRESS
Address		JP5	JP6	JP7	JP8	JP9
»	Disabled	Open	Open	Open	Open	Closed
	D0000h	Closed	Open	Open	Open	Open
	D4000h	Open	Closed	Open	Open	Open
	D8000h	Open	Open	Closed	Open	Open
	DC000h	Open	Open	Open	Closed	Open

DMA CHANNEL
Channel		JP10	JP11	JP12	JP13
	DMA0	Closed	Open	Open	Open
»	DMA3	Open	Closed	Open	Open
	DMA5	Open	Open	Closed	Open
	DMA6	Open	Open	Open	Closed

INTERRUPT REQUEST
IRQ		JP14	JP15	JP16	JP17
»	2/9	Closed	Open	Open	Open
	5	Open	Open	Open	Closed
	12	Open	Closed	Open	Open
	15	Open	Open	Closed	Open

CABLE TYPE
Type		SW1
»	RG-58A/U 50ohm coaxial	Off
	AUI transceiver via DB-15 port	On
