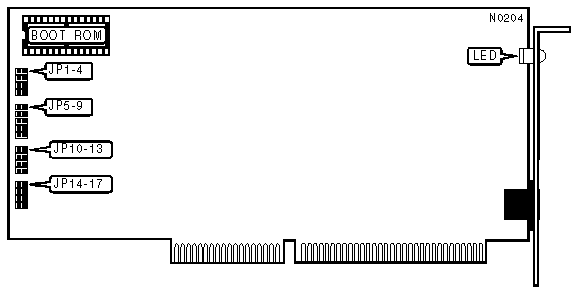

6510 10BT, LE025-C Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Shielded/Unshielded twisted pair
Boot ROM	Available

I/O BASE ADDRESS
I/O		JP1	JP2	JP3	JP4
	300h	Closed	Open	Open	Open
	320h	Open	Closed	Open	Open
	340h	Open	Open	Closed	Open
»	360h	Open	Open	Open	Closed

BOOT ROM BASE ADDRESS
Address		JP5	JP6	JP7	JP8	JP9
»	Disabled	Open	Open	Open	Open	Closed
	D0000h	Closed	Open	Open	Open	Open
	D4000h	Open	Closed	Open	Open	Open
	D8000h	Open	Open	Closed	Open	Open
	DC000h	Open	Open	Open	Closed	Open

DMA CHANNEL
Channel		JP10	JP11	JP12	JP13
	DMA0	Closed	Open	Open	Open
»	DMA3	Open	Closed	Open	Open
	DMA5	Open	Open	Closed	Open
	DMA6	Open	Open	Open	Closed

INTERRUPT SETTINGS
IRQ		JP14	JP15	JP16	JP17
	5	Open	Open	Open	Closed
»	9	Closed	Open	Open	Open
	12	Open	Closed	Open	Open
	15	Open	Open	Closed	Open

DIAGNOSTIC LED(S)
Status	Condition
Off	Power is off, or the network connection is bad
Blinking	Data is being received
On	Network connection good.
