515 Network Card Settings and Configuration
BAY NETWORKS, INC.
515
Device Type | Ethernet Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 100Mbps (200Mbps full duplex) |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | External |

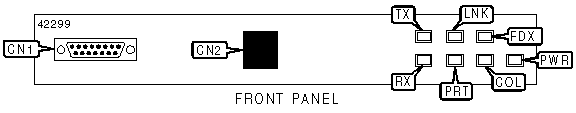

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | RJ-45 UTP connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
TX | Green | On | Data is being transmitted |
TX | Green | Off | Data is not being transmitted |
RX | Green | On | Data is being received |
RX | Green | Off | Data is not being received |
LNK | Green | On | Network connection is good |
LNK | Green | Off | Network connection is broken |
PRT | Amber | On | Transceiver has been disabled by network management |
PRT | Amber | Off | Transceiver has not been disabled by network management |
FDX | Green | On | Transceiver is in full duplex mode |
FDX | Green | Off | Transceiver is in CSMA/CD shared media mode |
COL | Amber | On | Collision detected on network |
COL | Amber | Off | No collision detected on network |
PWR | Green | On | Power is on |
PWR | Green | Off | Power is off |
