502A Network Card Settings and Configuration
BAY NETWORKS, INC.
502A
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | Shielded twisted pair |
Data Bus | External |

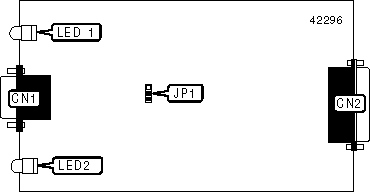

CONNECTIONS | |||
Function | Label | Function | Label |
9-pin STP connector | CN1 | AUI transceiver via DB-15 | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | SQE test function enabled | JP1 | Pins 1 & 2 closed |
| SQE test function disabled | JP1 | Pins 2 & 3 closed |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Green | On | SQE test function enabled |
LED2 | Green | Off | SQE test function disabled |
