ASANTEFAST 10/100 PCI (VER. 2) Network Card Settings and Configuration
ASANTE TECHNOLOGIES, INC.
ASANTEFAST 10/100 PCI (VER. 2)
Card Type | Ethernet |
Data Bus | 32-bit PCI |
Maximum Network Rate | 10/100Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Not available |

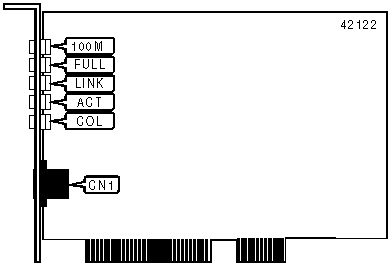

CONNECTIONS | |
Function | Label |
RJ-45 connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
100M | Green | On | Card is configured for 100Mbps operation |
100M | Green | Off | Card is configured for 10Mbps operation |
FULL | Green | On | Card is configured for full duplex operation |
FULL | Green | Off | Card is configured for half duplex operation |
LINK | Green | On | Network connection is good |
LINK | Green | Off | Network connection is broken |
ACT | Green | Blinking | Card is transmitting |
ACT | Green | Off | Card is not transmitting |
COL | Amber | On | Collision detected on network |
COL | Amber | Off | No collision detected on network |
