A2Mbps Network Card Settings and Configuration

ARTISOFT, INC.

A2Mbps

NIC Type
LANtastic
Transfer Rate
2Mbps
Data Bus
8-bit ISA
Topology
Star
Linear Bus (with optional LANtastic Repeater Hub)
Wiring Type
Shielded twisted pair
Belden 9792/Plenum 89729
Boot ROM
Available

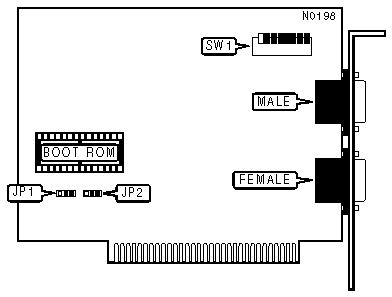

OPTIONAL CHIP SELECTION
Type
JP1
JP2
32KB RAM chip
Pins 1 & 2 Closed
Pins 1 & 2 Closed
Boot ROM
Pins 2 & 3 Closed
Pins 2 & 3 Closed
Note:This card can use either a 32KB RAM chip or a boot ROM in the boot ROM socket, but not both.

I/O BASE ADDRESS
Address
SW1/1
SW1/2
SW1/3
SW1/4

200h
Off
Off
Off
Off

220h
Off
Off
Off
On

240h
Off
Off
On
Off

260h
Off
Off
On
On
»
280h
Off
On
Off
Off

2A0h
Off
On
Off
On

2C0h
Off
On
On
Off

2E0h
Off
On
On
On

300h
On
Off
Off
Off

320h
On
Off
Off
On

340h
On
Off
On
Off

360h
On
Off
On
On

380h
On
On
Off
Off

3A0h
On
On
Off
On

3C0h
On
On
On
Off

3E0h
On
On
On
On

BOOT ROM ADDRESS
Address
SW1/5
SW1/6
SW1/7
SW1/8

8000h
Off
Off
Off
Off

8800h
Off
Off
Off
On

9000h
Off
Off
On
Off

9800h
Off
Off
On
On

A000h
Off
On
Off
Off

A800h
Off
On
Off
On

B000h
Off
On
On
Off

B800h
Off
On
On
On

C000h
On
Off
Off
Off

C800h
On
Off
Off
On
»
D000h
On
Off
On
Off

D800h
On
Off
On
On

E000h
On
On
Off
Off

E800h
On
On
Off
On

F000h
On
On
On
Off

F800h
On
On
On
On
