ETHERDUO-16 (EN1657-P) Network Card Settings and Configuration
ACCTON TECHNOLOGY CORPORATION
ETHERDUO-16 (EN1657-P)
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | 16KB |
Boot ROM | Unidentified |
Network Transfer Rate | 10Mbps |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Data Bus | 16-bit ISA |

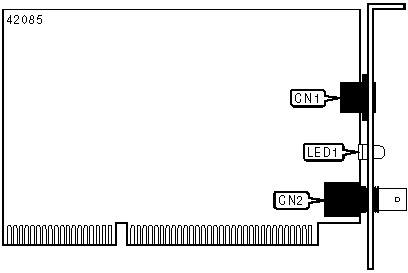

CONNECTIONS | |||
Function | Label | Function | Label |
UTP via RJ-45 connector | CN1 | RG-58A/U connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | UTP link is good |
LED1 | Green | Off | UTP link is broken |
