ETHERDUO-16 (EN1666) Network Card Settings and Configuration
ACCTON TECHNOLOGY CORPORATION
ETHERDUO-16 (EN1666)
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |

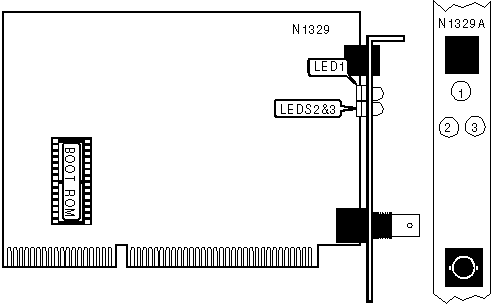

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | 10Base-T network connection is good |
LED1 | Green | Off | 10Base-T network connection is broken |
LED2 | Green | Blinking | Data is being transmitted |
LED2 | Green | Off | Data is not being transmitted |
LED3 | Green | Blinking | Data is being received |
LED3 | Green | Off | Data is not being received |
