ZIDA TECHNOLOGIES, INC.
6MFX (VER. 1.00)
Device Type | Mainboard |
Processor | Pentium II |
Processor Speed | 233/266MHz |
Chip Set | Intel 440FX |
Video Chip Set | None |
Maximum Onboard Memory | 256MB (EDO supported) |
Maximum Video Memory | None |
Cache | 256/512KB (located on Pentium II CPU) |
BIOS | AMI |
Dimensions | 309mm x 235mm |
I/O Options | 32-bit PCI slots (5), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in – CD-ROMs (2) |
NPU Options | None |

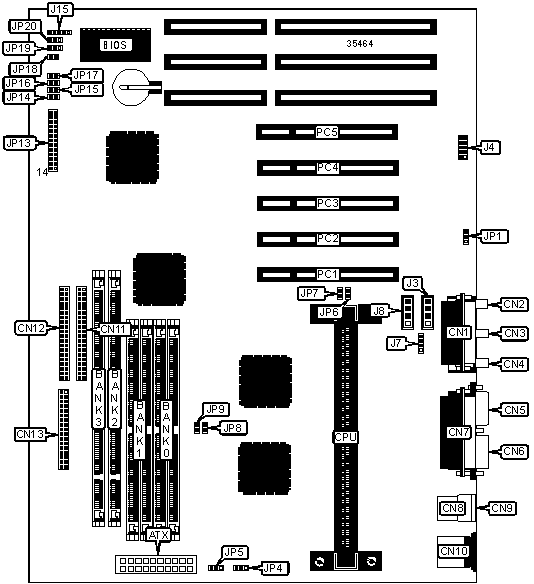

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
ATX power connector | ATX | Auxiliary connector | J4 |
Game/MIDI port | CN1 | Auxiliary in connector | J7 |
Microphone in | CN2 | Audio in – CD-ROM | J8 |
Line out | CN3 | IR connector | J15 |
Line in | CN4 | Speaker | JP1 |
Parallel port | CN5 | CPU fan power | JP4 |
Serial port 1 | CN6 | CPU fan power | JP5 |
Serial port 2 | CN7 | Power LED & keylock | JP13/pins 1 – 5 |
USB connector 1 | CN8 | Green PC connector | JP13/pins 7 & 8 |
USB connector 2 | CN9 | Speaker | JP13/pins 10 – 13 |
PS/2 mouse port | CN10 | IDE interface LED | JP13/pins 14 & 15 |
IDE interface 1 | CN11 | Soft off power supply | JP13/pins 17 & 18 |
IDE interface 2 | CN12 | Reset switch | JP13/pins 22 & 23 |
Floppy drive interface | CN13 | Turbo LED | JP13/pins 25 & 26 |
Audio in – CD-ROM | J3 | 32-bit PCI slots | PC1 – PC5 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Factory configured - do not alter | JP18 | Open |
» | Factory configured - do not alter | JP19 | Pins 1 & 2 closed |
» | Factory configured - do not alter | JP20 | Pins 1 & 2 closed |
SIMM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
8MB | (2) 1M x 36 | None |
16MB | (2) 2M x 36 | None |
16MB | (2) 1M x 36 | (2) 1M x 36 |
24MB | (2) 2M x 36 | (2) 1M x 36 |
32MB | (2) 4M x 36 | None |
32MB | (2) 2M x 36 | (2) 2M x 36 |
40MB | (2) 4M x 36 | (2) 1M x 36 |
48MB | (2) 4M x 36 | (2) 2M x 36 |
64MB | (2) 8M x 36 | None |
64MB | (2) 4M x 36 | (2) 4M x 36 |
72MB | (2) 8M x 36 | (2) 1M x 36 |
80MB | (2) 8M x 36 | (2) 2M x 36 |
SIMM CONFIGURATION (CON’T) | ||
Size | Bank 0 | Bank 1 |
96MB | (2) 8M x 36 | (2) 4M x 36 |
128MB | (2) 8M x 36 | (2) 8M x 36 |
128MB | (2) 16M x 36 | None |
136MB | (2) 16M x 36 | (2) 1M x 36 |
144MB | (2) 16M x 36 | (2) 2M x 36 |
160MB | (2) 16M x 36 | (2) 4M x 36 |
192MB | (2) 16M x 36 | (2) 8M x 36 |
256MB | (2) 16M x 36 | (2) 16M x 36 |
Note: Board accepts EDO memory. |
DIMM CONFIGURATION | ||
Size | Bank 2 | Bank 3 |
8MB | (1) 1M x 64 | None |
16MB | (1) 2M x 64 | None |
16MB | (1) 1M x 64 | (1) 1M x 64 |
24MB | (1) 2M x 64 | (1) 1M x 64 |
32MB | (1) 4M x 64 | None |
32MB | (1) 2M x 64 | (1) 2M x 64 |
40MB | (1) 4M x 64 | (1) 1M x 64 |
48MB | (1) 4M x 64 | (1) 2M x 64 |
64MB | (1) 8M x 64 | None |
64MB | (1) 4M x 64 | (1) 4M x 64 |
72MB | (1) 8M x 64 | (1) 1M x 64 |
80MB | (1) 8M x 64 | (1) 2M x 64 |
96MB | (1) 8M x 64 | (1) 4M x 64 |
128MB | (1) 16M x 64 | None |
128MB | (1) 8M x 64 | (1) 8M x 64 |
136MB | (1) 16M x 64 | (1) 1M x 64 |
144MB | (1) 16M x 64 | (1) 2M x 64 |
160MB | (1) 16M x 64 | (1) 4M x 64 |
192MB | (1) 16M x 64 | (1) 8M x 64 |
256MB | (1) 16M x 64 | (1) 16M x 64 |
Note: Board accepts EDO memory. |
CACHE CONFIGURATION |
Note: 256KB/512KB cache is located on the Pentium II CPU. |
CPU SPEED SELECTION | ||||||
CPU speed | Clock speed | Multiplier | JP6 | JP7 | JP8 | JP9 |
233MHz | 66MHz | 3.5x | Closed | Open | Closed | Open |
266MHz | 66MHz | 4x | Closed | Open | Closed | Open |
CPU SPEED SELECTION (CON’T) | ||||||
CPU speed | Clock speed | Multiplier | JP14 | JP15 | JP16 | JP17 |
233MHz | 66MHz | 3.5x | Open | Open | Closed | Closed |
266MHz | 66MHz | 4x | Closed | Closed | Open | Closed |
