5SVA (VER. 1.60), 5SVA-E (VER. 1.60) Motherboard Settings and Configuration






ZIDA TECHNOLOGIES INC.

5SVA (VER. 1.60), 5SVA-E (VER. 1.60)

Device Type

Mainboard

Processor

CX 6X86/IBM 6X86/CX 6X86MX/IBM 6X86MX/AM K5/

AM K6/Pentium/Pentium MMX

Processor Speed

90/100/120/133/150/166/180/200/233/266/300/333MHz

Chip Set

VIA VPX

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)

NPU Options

None

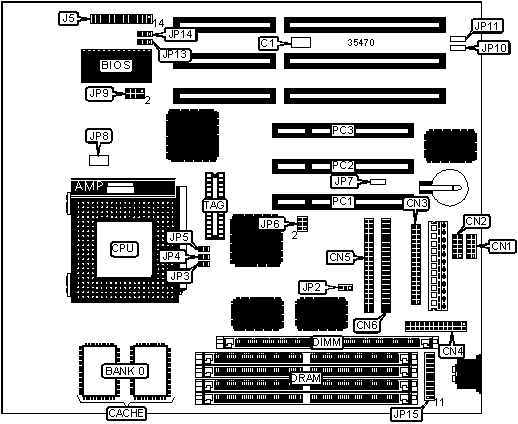

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

IDE interface LED

J5/pins 14 & 15

Serial port 2

CN2

Reset switch

J5/pins 22 & 23

Floppy drive interface

CN3

Turbo LED

J5/pins 25 & 26

Parallel port

CN4

USB connector 1

JP15/pins 1 - 5

IDE interface

CN5

PS/2 mouse interface

JP15/pins 6 10

IDE interface

CN6

USB connector 2

JP15/pins 11 15

Power LED & keylock

J5/pins 1 5

IR connector

JP15/pins 16 - 20

Green PC connector

J5/pins 7 & 8

32-bit PCI slots

PC1 PC3

Speaker

J5/pins 10 13



USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

C1

Unidentified

Factory configured - do not alter

JP7

Unidentified

Factory configured - do not alter

JP10

Unidentified

Factory configured - do not alter

JP11

Unidentified

CMOS memory normal operation

JP14

Pins 1 & 2 closed



CMOS memory clear

JP14

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

8MB

(1) 1M x 64

16MB

(1) 2M x 64

32MB

(1) 4M x 64

64MB

(1) 8M x 64

128MB

(1) 16M x 64

256MB

(1) 32M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

133MHz

55MHz

2x

1 & 2

Open

Closed

Open

3 & 5, 4 & 6

150MHz

60MHz

2x

2 & 3

Open

Closed

Open

1 & 3, 4 & 6

166MHz

66MHz

2x

2 & 3

Open

Closed

Open

2 & 4, 3 & 5

200MHz

75MHz

2x

1 & 2

Open

Closed

Open

1 & 3, 4 & 6

166MHz

60MHz

2.5x

2 & 3

Closed

Closed

Open

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

133MHz

55MHz

2x

1 & 2

Open

Closed

Open

3 & 5, 4 & 6

150MHz

60MHz

2x

2 & 3

Open

Closed

Open

1 & 3, 4 & 6

166MHz

66MHz

2x

2 & 3

Open

Closed

Open

2 & 4, 3 & 5

200MHz

75MHz

2x

1 & 2

Open

Closed

Open

1 & 3, 4 & 6

166MHz

60MHz

2.5x

2 & 3

Closed

Closed

Open

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

200MHz

75MHz

2x

1 & 2

Open

Closed

Open

1 & 3, 4 & 6

233MHz

75MHz

3x

1 & 2

Closed

Closed

Open

1 & 3, 4 & 6

300MHz

66MHz

3.5x

2 & 3

Open

Open

Open

2 & 4, 3 & 5

300MHz

75MHz

3x

1 & 2

Closed

Open

Open

1 & 3, 4 & 6

333MHz

75MHz

3.5x

1 & 2

Open

Open

Open

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

200MHz

75MHz

2x

1 & 2

Open

Closed

Open

1 & 3, 4 & 6

233MHz

75MHz

3x

1 & 2

Closed

Closed

Open

1 & 3, 4 & 6

300MHz

66MHz

3.5x

2 & 3

Open

Open

Open

2 & 4, 3 & 5

300MHz

75MHz

3x

1 & 2

Closed

Open

Open

1 & 3, 4 & 6

333MHz

75MHz

3.5x

1 & 2

Open

Open

Open

1 & 3, 4 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

90MHz

60MHz

1.5x

2 & 3

Open

Open

Closed

1 & 3, 4 & 6

100MHz

66MHz

1.5x

2 & 3

Open

Open

Closed

2 & 4, 3 & 5

133MHz

66MHz

1.5x

2 & 3

Open

Open

Closed

2 & 4, 3 & 5

150MHz

60MHz

1.75x

2 & 3

Closed

Closed

Open

1 & 3, 4 & 6

166MHz

66MHz

1.75x

2 & 3

Closed

Closed

Open

2 & 4, 3 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

166MHz

66MHz

2.5x

2 & 3

Closed

Closed

Open

2 & 4, 3 & 5

200MHz

66MHz

3x

2 & 3

Closed

Open

Open

2 & 4, 3 & 5

233MHz

66MHz

3.5x

2 & 3

Open

Open

Open

2 & 4, 3 & 5

266MHz

66MHz

4x

2 & 3

Open

Closed

Closed

2 & 4, 3 & 5

300MHz

66MHz

4.5x

2 & 3

Closed

Closed

Closed

2 & 4, 3 & 5

333MHz

66MHz

5x

2 & 3

Closed

Open

Closed

2 & 4, 3 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

90MHz

60MHz

1.5x

2 & 3

Open

Open

Closed

1 & 3, 4 & 6

100MHz

66MHz

1.5x

2 & 3

Open

Open

Closed

2 & 4, 3 & 5

120MHz

60MHz

2x

2 & 3

Open

Closed

Open

1 & 3, 4 & 6

133MHz

66MHz

2x

2 & 3

Open

Closed

Open

2 & 4, 3 & 5

150MHz

60MHz

2.5x

2 & 3

Closed

Closed

Open

1 & 3, 4 & 6

166MHz

66MHz

2.5x

2 & 3

Closed

Closed

Open

2 & 4, 3 & 5

180MHz

60MHz

3x

2 & 3

Closed

Open

Open

1 & 3, 4 & 6

200MHz

66MHz

3x

2 & 3

Closed

Open

Open

2 & 4, 3 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP4

JP5

JP6

166MHz

66MHz

2.5x

2 & 3

Closed

Closed

Open

2 & 4, 3 & 5

200MHz

66MHz

3x

2 & 3

Closed

Open

Open

2 & 4, 3 & 5

233MHz

66MHz

3.5x

2 & 3

Open

Open

Open

2 & 4, 3 & 5

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP8

JP9

JP13

3.5v

Open

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

Open

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

JP8

JP9

JP13

3.3v

2.2v

Open

Pins 3 & 4 closed

Pins 1 & 2 closed

3.3v

2.8v

Open

Pins 7 & 8 closed

Pins 1 & 2 closed

3.3v

2.9v

Open

Pins 1 & 2, 7 & 8 closed

Pins 1 & 2 closed

3.3v

3.2v

Open

Pins 5 & 6, 7 & 8 closed

Pins 1 & 2 closed
