5STX (VER. 1.10) Motherboard Settings and Configuration
ZIDA TECHNOLOGIES INC.
5STX (VER. 1.10)
Device Type | Mainboard |
Processor | CX 6X86/IBM 6X86/AM K5/AM K6/Pentium/Pentium MMX |
Processor Speed | 90/100/120/133/150/166/200/233MHz |
Chip Set | Intel 430TX |
Video Chip Set | None |
Maximum Onboard Memory | 256MB (EDO & SDRAM supported) |
Maximum Video Memory | None |
Cache | 256/512KB |
BIOS | Award |
Dimensions | 220mm x 204mm |
I/O Options | 32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2) |
NPU Options | None |

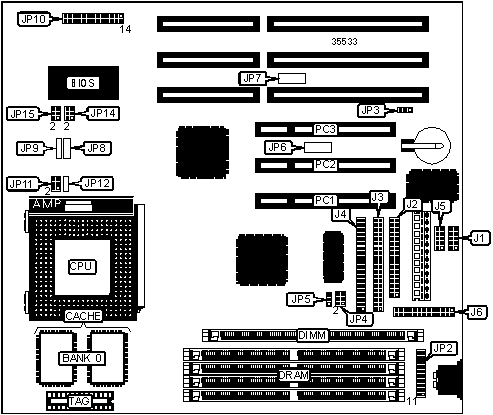

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Serial port 1 | J1 | IR connector | JP2/pins 16 - 20 |
Floppy drive interface | J2 | PCI media connector | JP6 |
IDE interface 1 | J3 | ISA media connector | JP7 |
IDE interface 2 | J4 | Power LED & keylock | JP10/pins 1 5 |
Serial port 2 | J5 | Green PC connector | JP10/pins 7 & 8 |
Parallel port | J6 | Speaker | JP10/pins 10 13 |
USB connector 1 | JP2/pins 1 - 5 | IDE interface LED | JP10/pins 14 & 15 |
PS/2 mouse interface | JP2/pins 6 10 | Reset switch | JP10/pins 22 & 23 |
USB connector 2 | JP2/pins 11 15 | 32-bit PCI slots | PC1 PC3 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | CMOS memory normal operation | JP3 | Pins 2 & 3 closed |
CMOS memory clear | JP3 | Pins 1 & 2 closed | |
» | Factory configured - do not alter | JP8 | Unidentified |
» | Factory configured - do not alter | JP9 | Unidentified |
» | Factory configured - do not alter | JP12 | Unidentified |
SIMM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
8MB | (2) 1M x 36 | None |
16MB | (2) 2M x 36 | None |
16MB | (2) 1M x 36 | (2) 1M x 36 |
24MB | (2) 2M x 36 | (2) 1M x 36 |
32MB | (2) 4M x 36 | None |
32MB | (2) 2M x 36 | (2) 2M x 36 |
40MB | (2) 4M x 36 | (2) 1M x 36 |
48MB | (2) 4M x 36 | (2) 2M x 36 |
64MB | (2) 8M x 36 | None |
64MB | (2) 4M x 36 | (2) 4M x 36 |
72MB | (2) 8M x 36 | (2) 1M x 36 |
80MB | (2) 8M x 36 | (2) 2M x 36 |
96MB | (2) 8M x 36 | (2) 4M x 36 |
SIMM CONFIGURATION (CONT) | ||
Size | Bank 0 | Bank 1 |
128MB | (2) 8M x 36 | (2) 8M x 36 |
128MB | (2) 16M x 36 | None |
136MB | (2) 16M x 36 | (2) 1M x 36 |
144MB | (2) 16M x 36 | (2) 2M x 36 |
160MB | (2) 16M x 36 | (2) 4M x 36 |
192MB | (2) 16M x 36 | (2) 8M x 36 |
256MB | (2) 16M x 36 | (2) 16M x 36 |
Note: Board accepts EDO memory. | ||
DIMM CONFIGURATION | |
Size | Bank 2 |
8MB | (1) 1M x 64 |
16MB | (1) 2M x 64 |
32MB | (1) 4M x 64 |
64MB | (1) 8M x 64 |
128MB | (1) 16M x 64 |
256MB | (1) 32M x 64 |
Note: Board accepts SDRAM memory. | |
CACHE CONFIGURATION | ||
Size | Bank 0 | TAG |
256KB | (2) 32K x 32 | Unidentified |
512KB | (2) 64K x 32 | Unidentified |
CPU SPEED SELECTION (CX 6X86) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
133MHz | 55MHz | 2x | 3 & 5, 4 & 6 | 1 & 2 | 1 & 3, 4 & 6 |
166MHz | 66MHz | 2x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 4 & 6 |
200MHz | 75MHz | 2x | 1 & 3, 4 & 6 | 1 & 2 | 1 & 3, 4 & 6 |
Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (IBM 6X86) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
133MHz | 55MHz | 2x | 3 & 5, 4 & 6 | 1 & 2 | 1 & 3, 4 & 6 |
166MHz | 66MHz | 2x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 4 & 6 |
200MHz | 75MHz | 2x | 1 & 3, 4 & 6 | 1 & 2 | 1 & 3, 4 & 6 |
Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (AM K5) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
90MHz | 60MHz | 1.5x | 1 & 3, 4 & 6 | 2 & 3 | 1 & 3, 2 & 4 |
100MHz | 66MHz | 1.5x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 2 & 4 |
133MHz | 66MHz | 1.5x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 2 & 4 |
150MHz | 60MHz | 1.75x | 1 & 3, 4 & 6 | 2 & 3 | 3 & 5, 4 & 6 |
166MHz | 66MHz | 1.75x | 2 & 4, 3 & 5 | 2 & 3 | 3 & 5, 4 & 6 |
Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (AM K6) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
166MHz | 66MHz | 2.5x | 2 & 4, 3 & 5 | 2 & 3 | 3 & 5, 4 & 6 |
200MHz | 66MHz | 3x | 2 & 4, 3 & 5 | 2 & 3 | 2 & 4, 3 & 5 |
233MHz | 66MHz | 3.5x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 2 & 4 |
Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (INTEL) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
90MHz | 60MHz | 1.5x | 1 & 3, 4 & 6 | 2 & 3 | 1 & 3, 2 & 4 |
100MHz | 66MHz | 1.5x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 2 & 4 |
120MHz | 60MHz | 2x | 1 & 3, 4 & 6 | 2 & 3 | 1 & 3, 4 & 6 |
133MHz | 66MHz | 2x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 4 & 6 |
150MHz | 60MHz | 2.5x | 1 & 3, 4 & 6 | 2 & 3 | 3 & 5, 4 & 6 |
166MHz | 66MHz | 2.5x | 2 & 4, 3 & 5 | 2 & 3 | 3 & 5, 4 & 6 |
200MHz | 66MHz | 3x | 2 & 4, 3 & 5 | 2 & 3 | 2 & 4, 3 & 5 |
Note: Pins designated should be in the closed position. | |||||
CPU SPEED SELECTION (INTEL MMX) | |||||
CPU speed | Clock speed | Multiplier | JP4 | JP5 | JP11 |
166MHz | 66MHz | 2.5x | 2 & 4, 3 & 5 | 2 & 3 | 3 & 5, 4 & 6 |
200MHz | 66MHz | 3x | 2 & 4, 3 & 5 | 2 & 3 | 2 & 4, 3 & 5 |
233MHz | 66MHz | 3.5x | 2 & 4, 3 & 5 | 2 & 3 | 1 & 3, 2 & 4 |
Note: Pins designated should be in the closed position. | |||||
CPU VOLTAGE SELECTION | ||
Voltage | JP14 | JP15 |
2.8v | 1 & 3, 4 & 6 | 1 & 3, 2 & 4 |
2.9v | 1 & 3, 4 & 6 | 2 & 4, 3 & 5 |
3.2v | 3 & 5, 4 & 6 | 1 & 3, 2 & 4 |
3.4v | 3 & 5, 4 & 6 | 1 & 3, 4 & 6 |
3.5v | 3 & 5, 4 & 6 | 3 & 5, 4 & 6 |
