5DTX (VER. 1.00) Motherboard Settings and Configuration

ZIDA TECHNOLOGIES INC.

5DTX (VER. 1.00)

Device Type
Mainboard
Processor
CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/AM K5/AM K6/Pentium/Pentium MMX
Processor Speed
90/100/120/133/150/166/180/200/233MHz
Chip Set
Intel 430TX
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO & SDRAM supported)
Maximum Video Memory
None
Cache
256/512KB
BIOS
Award
Dimensions
254mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
USB connector 1
JP3
Serial port 2
J1
USB connector 2
JP4
Serial port 1
J2
IR connector
JP7
Floppy drive interface
J3
Power LED & keylock
JP14/pins 1 – 5
IDE interface 1
J4
Green PC connector
JP14/pins 7 & 8
IDE interface 2
J5
Speaker
JP14/pins 10 – 13
Parallel port
J6
IDE interface LED
JP14/pins 14 & 15
PS/2 mouse interface
JP2
32-bit PCI slots
PC1 – PC4

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J12
Unidentified
»
Factory configured - do not alter
J14
Unidentified
»
Factory configured - do not alter
J14
Unidentified
»
CMOS memory normal operation
JP8
Pins 2 & 3 closed

CMOS memory clear
JP8
Pins 1 & 2 closed
»
Factory configured - do not alter
JP19
Unidentified
»
Factory configured - do not alter
JP20
Unidentified

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36

SIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 2
Bank 3
8MB
(1) 1M x 64
None
16MB
(1) 2M x 64
None
16MB
(1) 1M x 64
(1) 1M x 64
24MB
(1) 2M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
32MB
(1) 2M x 64
(1) 2M x 64
40MB
(1) 4M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
64MB
(1) 8M x 64
None
64MB
(1) 4M x 64
(1) 4M x 64
72MB
(1) 8M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64
96MB
(1) 8M x 64
(1) 4M x 64
128MB
(1) 16M x 64
None
128MB
(1) 8M x 64
(1) 8M x 64
136MB
(1) 16M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 16M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size
Bank 0
TAG
256KB
(2) 32K x 32
Unidentified
512KB
(2) 64K x 32
Unidentified

CPU SPEED SELECTION (CX 6X86)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
133MHz
55MHz
2x
3 & 5, 4 & 6
1 & 2
1 & 3, 4 & 6
166MHz
66MHz
2x
2 & 4, 3 & 5
2 & 3
1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
133MHz
55MHz
2x
3 & 5, 4 & 6
1 & 2
1 & 3, 4 & 6
166MHz
66MHz
2x
2 & 4, 3 & 5
2 & 3
1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
200MHz
75MHz
2x
1 & 3, 4 & 6
1 & 2
1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
200MHz
75MHz
2x
1 & 3, 4 & 6
1 & 2
1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
90MHz
60MHz
1.5x
1 & 3, 4 & 6
2 & 3
1 & 3, 2 & 4
100MHz
66MHz
1.5x
2 & 4, 3 & 5
2 & 3
1 & 3, 2 & 4
133MHz
66MHz
1.5x
2 & 4, 3 & 5
2 & 3
1 & 3, 2 & 4
150MHz
60MHz
1.75x
1 & 3, 4 & 6
2 & 3
3 & 5, 4 & 6
166MHz
66MHz
1.75x
2 & 4, 3 & 5
2 & 3
3 & 5, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
166MHz
66MHz
2.5x
2 & 4, 3 & 5
2 & 3
3 & 5, 4 & 6
200MHz
66MHz
3x
2 & 4, 3 & 5
2 & 3
2 & 4, 3 & 5
233MHz
66MHz
3.5x
2 & 4, 3 & 5
2 & 3
1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
90MHz
60MHz
1.5x
1 & 3, 4 & 6
2 & 3
1 & 3, 2 & 4
100MHz
66MHz
1.5x
2 & 4, 3 & 5
2 & 3
1 & 3, 2 & 4
120MHz
60MHz
2x
1 & 3, 4 & 6
2 & 3
1 & 3, 4 & 6
133MHz
66MHz
2x
2 & 4, 3 & 5
2 & 3
1 & 3, 4 & 6
150MHz
60MHz
2.5x
1 & 3, 4 & 6
2 & 3
3 & 5, 4 & 6
166MHz
66MHz
2.5x
2 & 4, 3 & 5
2 & 3
3 & 5, 4 & 6
180MHz
60MHz
3x
1 & 3, 4 & 6
2 & 3
2 & 4, 3 & 5
200MHz
66MHz
3x
2 & 4, 3 & 5
2 & 3
2 & 4, 3 & 5
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed
Clock speed
Multiplier
JP5
JP6
JP10
166MHz
66MHz
2.5x
2 & 4, 3 & 5
2 & 3
3 & 5, 4 & 6
200MHz
66MHz
3x
2 & 4, 3 & 5
2 & 3
2 & 4, 3 & 5
233MHz
66MHz
3.5x
2 & 4, 3 & 5
2 & 3
1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type
JP9
AM K5
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
AM K6
Open
Cyrix 6x86
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Cyrix 6x86L
Open
IBM 6x86
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
IBM 6x86L
Open
Pentium
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Pentium MMX
Open

CPU VOLTAGE SELECTION (SINGLE)
Voltage
JP16
3.3v
Pins 1 & 2 closed
3.52v
Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)
Voltage
JP15
2.8v
Pins 1 & 6 closed
2.9v
Pins 2 & 7 closed
3.2v
Pins 3 & 8 closed
3.3v
Pins 4 & 9 closed
3.5v
Pins 5 & 10 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

5DTX (VER. 1.00) Motherboard Settings and Configuration

Search

My Books

Discover

Device Type	Mainboard
Processor	CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/AM K5/AM K6/Pentium/Pentium MMX
Processor Speed	90/100/120/133/150/166/180/200/233MHz
Chip Set	Intel 430TX
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2), ATX power connector
NPU Options	None

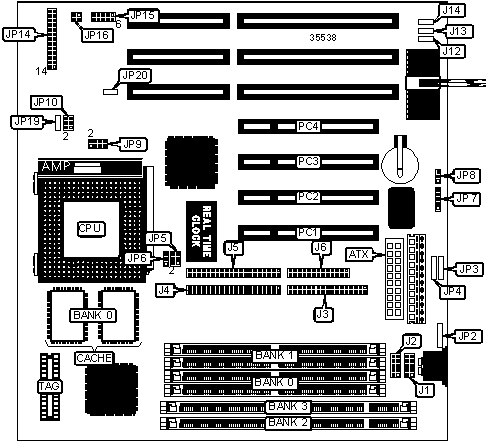

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	USB connector 1	JP3
Serial port 2	J1	USB connector 2	JP4
Serial port 1	J2	IR connector	JP7
Floppy drive interface	J3	Power LED & keylock	JP14/pins 1 – 5
IDE interface 1	J4	Green PC connector	JP14/pins 7 & 8
IDE interface 2	J5	Speaker	JP14/pins 10 – 13
Parallel port	J6	IDE interface LED	JP14/pins 14 & 15
PS/2 mouse interface	JP2	32-bit PCI slots	PC1 – PC4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J12	Unidentified
»	Factory configured - do not alter	J14	Unidentified
»	Factory configured - do not alter	J14	Unidentified
»	CMOS memory normal operation	JP8	Pins 2 & 3 closed
	CMOS memory clear	JP8	Pins 1 & 2 closed
»	Factory configured - do not alter	JP19	Unidentified
»	Factory configured - do not alter	JP20	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2	Bank 3
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(2) 32K x 32	Unidentified
512KB	(2) 64K x 32	Unidentified

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
133MHz	55MHz	2x	3 & 5, 4 & 6	1 & 2	1 & 3, 4 & 6
166MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
133MHz	55MHz	2x	3 & 5, 4 & 6	1 & 2	1 & 3, 4 & 6
166MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
200MHz	75MHz	2x	1 & 3, 4 & 6	1 & 2	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86L)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
200MHz	75MHz	2x	1 & 3, 4 & 6	1 & 2	1 & 3, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
90MHz	60MHz	1.5x	1 & 3, 4 & 6	2 & 3	1 & 3, 2 & 4
100MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
133MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
150MHz	60MHz	1.75x	1 & 3, 4 & 6	2 & 3	3 & 5, 4 & 6
166MHz	66MHz	1.75x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
233MHz	66MHz	3.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
90MHz	60MHz	1.5x	1 & 3, 4 & 6	2 & 3	1 & 3, 2 & 4
100MHz	66MHz	1.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
120MHz	60MHz	2x	1 & 3, 4 & 6	2 & 3	1 & 3, 4 & 6
133MHz	66MHz	2x	2 & 4, 3 & 5	2 & 3	1 & 3, 4 & 6
150MHz	60MHz	2.5x	1 & 3, 4 & 6	2 & 3	3 & 5, 4 & 6
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
180MHz	60MHz	3x	1 & 3, 4 & 6	2 & 3	2 & 4, 3 & 5
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP5	JP6	JP10
166MHz	66MHz	2.5x	2 & 4, 3 & 5	2 & 3	3 & 5, 4 & 6
200MHz	66MHz	3x	2 & 4, 3 & 5	2 & 3	2 & 4, 3 & 5
233MHz	66MHz	3.5x	2 & 4, 3 & 5	2 & 3	1 & 3, 2 & 4
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP9
AM K5	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
AM K6	Open
Cyrix 6x86	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Cyrix 6x86L	Open
IBM 6x86	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
IBM 6x86L	Open
Pentium	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed
Pentium MMX	Open

CPU VOLTAGE SELECTION (SINGLE)
Voltage	JP16
3.3v	Pins 1 & 2 closed
3.52v	Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)
Voltage	JP15
2.8v	Pins 1 & 6 closed
2.9v	Pins 2 & 7 closed
3.2v	Pins 3 & 8 closed
3.3v	Pins 4 & 9 closed
3.5v	Pins 5 & 10 closed
