Z-STATION LX PRO Motherboard Settings and Configuration

ZENITH DATA SYSTEMS

Z-STATION LX PRO

Device Type
Mainboard
Processor
Pentium Pro
Processor Speed
150/166/180/200MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on the Pentium Pro CPU)
BIOS
Unidentified
Dimensions
Unidentified
I/O Options
32-bit PCI slots (4), CD-ROM interface, floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), wavetable connector, RJ-11 connector, IR connector

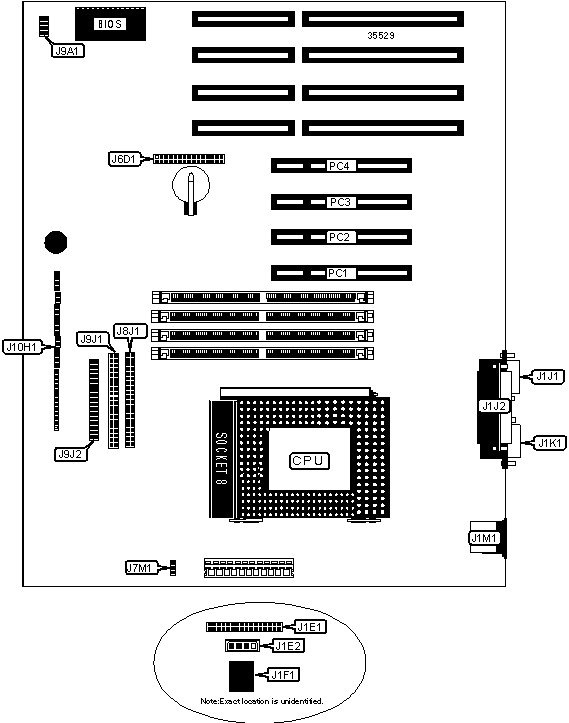

CONNECTIONS
Purpose
Location
Purpose
Location
Wavetable connector
J1E1
IDE interface 1
J9J1
Audio in - CD-ROM
J1E2
Floppy drive interface
J9J2
Telephony connector
J1F1
Green PC connector
J10H1/pins 1 - 6
Serial port 1
J1J1
IR connector
J10H1/pins 8 - 12
Parallel port
J1J2
IDE interface LED
J10H1/pins 15 - 17
Serial port 2
J1K1
Power LED
J10H1/pins 18 - 20
PS/2 mouse port
J1M1
Reset switch
J10H1/pins 21 - 23
CPU fan power
J7M1
Speaker
J10H1/pins 24 - 27
IDE interface 2
J8J1
32-bit PCI slots
PC1 - PC4
Auxiliary fan power
J9A1

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS setup access enabled
J6D1
Pins 28 & 30 closed

CMOS setup access disabled
J6D1
Pins 26 & 28 closed
»
CMOS memory normal operation
J6D1
Pins 20 & 22 closed

CMOS memory clear
J6D1
Pins 18 & 20 closed
»
Password normal operation
J6D1
Pins 27 & 29 closed

Password memory clear
J6D1
Pins 25 & 27 closed
»
BIOS normal operation
J6D1
Pins 4 & 6 closed

BIOS recovery mode
J6D1
Pins 2 & 4 closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
136MB
(2) 16M x 36
(2) 1M x 36
144MB
(2) 16M x 36
(2) 2M x 36
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
Note: Board accepts EDO memory.

CPU SPEED SELECTION (PENTIUM)
CPU speed
Clock speed
Multiplier
J6D1
150MHz
60MHz
2.5x
Pins 10 & 12, 11& 13, 17 & 19 Closed
166MHz
66MHz
2.5x
Pins 10 & 12, 11 & 13, 19 & 21 closed
180MHz
60MHz
3x
Pins 9 & 11, 12 & 14, 17 & 19 closed
200MHz
66MHz
3x
Pins 9 & 11, 12 & 14, 19 & 21 closed
