Z-SERVER WL Motherboard Settings and Configuration






ZENITH DATA SYSTEMS, INC.

Z-SERVER WL

Device Type

Mainboard

Processor

Pentium

Processor Speed

120/150MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

256MB

Maximum Video Memory

1MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

305mm x 244mm

I/O Options

PCI slots (3), SCSI interface, Wide SCSI interface, serial port, riser slot, cache slot

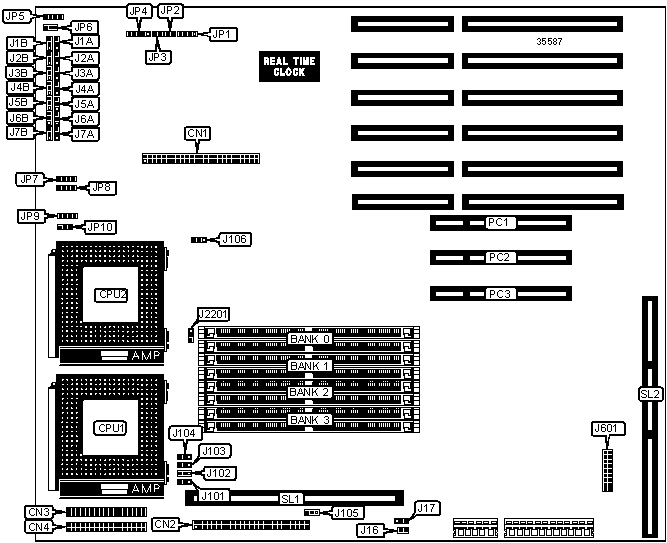

CONNECTIONS

Purpose

Location

Purpose

Location

Wide SCSI interface

CN1

Chassis fan power

JP6

SCSI interface

CN2

HD - IN/OUT

JP5

Floppy drive interface

CN3

HD - IN

JP7

Proprietary Zenith front panel connector

CN4

Chassi switch

JP8

Serial port 2

J601

Hard Drive LED

JP9

Speaker

JP1

CPU fan power

JP10

Reset switch

JP2

32-bit PCI slots

PC1 - PC3

Power LED

JP3

Cache slot

SL1

Keylock

JP4

Riser slot

SL2

USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

J106

Pins 2 & 3 closed

Factory configured - do not alter

J16

Unidentified

Factory configured - do not alter

J17

Unidentified

CMOS protection enabled

J1B

Pins 1 & 2 closed



CMOS clear

J1B

Pins 2 & 3 closed

Password normal operation

J2B

Pins 1 & 2 closed



Password clear

J2B

Pins 2 & 3 closed

Factory configured - do not alter

J3A

Pins 1 & 2 closed

CPU 1 is primary

J3B

Pins 1 & 2 closed



CPU 2 is primary

J3B

Pins 2 & 3 closed

Monitor type select color

J4A

Pins 1 & 2 closed



Monitor type select monochrome

J4A

Pins 2 & 3 closed

Factory configured - do not alter

J4B

Pins 1 & 2 closed

Factory configured - do not alter

J5A

Pins 1 & 2 closed

BIOS write protect enabled

J6A

Pins 1 & 2 closed



BIOS write protect disabled

J6A

Pins 2 & 3 closed

Factory configured - do not alter

J7A

Pins 2 & 3 closed

Factory configured - do not alter

J7B

Pins 1 & 2 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

16MB

(1) 4M x 36

None

None

None

16MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

None

16MB

(1) 2M x 36

(1) 2M x 36

None

None

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

17MB

(1) 4M x 36

(1) 256K x 36

None

None

17MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

None

17MB

(1) 256K x 36

(1) 4M x 36

None

None

18MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

None

18MB

(1) 4M x 36

(1) 512K x 36

None

None

18MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

None

18MB

(1) 512K x 36

(1) 4M x 36

None

None

19MB

(1) 4M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

20MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

None

20MB

(1) 4M x 36

(1) 1M x 36

None

None

20MB

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

20MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

None

20MB

(1) 1M x 36

(1) 4M x 36

None

None

22MB

(1) 4M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

24MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

None

24MB

(1) 4M x 36

(1) 2M x 36

None

None

24MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

None

24MB

(1) 2M x 36

(1) 4M x 36

None

None

25MB

(1) 256K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

26MB

(1) 512K x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

28MB

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

28MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

32MB

(1) 8M x 36

None

None

None

32MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

None

32MB

(1) 4M x 36

(1) 4M x 36

None

None

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

33MB

(1) 8M x 36

(1) 256K x 36

None

None

33MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

None

33MB

(1) 256K x 36

(1) 8M x 36

None

None

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

34MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

None

34MB

(1) 8M x 36

(1) 512K x 36

None

None

34MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

None

34MB

(1) 512K x 36

(1) 8M x 36

None

None

35MB

(1) 8M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

36MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

None

36MB

(1) 8M x 36

(1) 1M x 36

None

None

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

None

36MB

(1) 1M x 36

(1) 8M x 36

None

None

38MB

(1) 8M x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

40MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

None

40MB

(1) 8M x 36

(1) 2M x 36

None

None

40MB

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

None

40MB

(1) 2M x 36

(1) 8M x 36

None

None

44MB

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

48MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

None

48MB

(1) 8M x 36

(1) 4M x 36

None

None

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

None

48MB

(1) 4M x 36

(1) 8M x 36

None

None

49MB

(1) 256K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

50MB

(1) 512K x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

52MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

56MB

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

56MB

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

None

64MB

(1) 8M x 36

(1) 8M x 36

None

None

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

(1) 16M x 36

None

None

None

65MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

None

66MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

None

68MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

None

72MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

None

80MB

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

80MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

None

96MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

None

97MB

(1) 256K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

98MB

(1) 512K x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

100MB

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

104MB

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

112MB

(1) 4M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

128MB

(1) 16M x 36

(1) 16M x 36

(1) 16M x 36

None

192MB

(1) 16M x 36

(1) 16M x 36

(1) 16M x 36

None

256MB

(1) 16M x 36

(1) 16M x 36

(1) 16M x 36

(1) 16M x 36

CACHE JUMPER CONFIGURATION

Size

J101

J102

J103

J104

J105

256K

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

512K

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated are in the closed position.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J1A

J2A

J5B

J6B

J2201

120MHz

60MHz

2x

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Note: Pins designated are in the closed position.

CACHE CONFIGURATION

Size

SL1

256KB

None

512KB

256KB

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

512KB

512KB

None

1024KB

512KB

512KB
