WYSE SERIES 6000I (MODEL 650) Motherboard Settings and Configuration

WYSE TECHNOLOGY, INC.

WYSE SERIES 6000I (MODEL 650)

Processor
80486SX/80487SX/80486DX/80486DX2
Processor Speed
16/20/25/33/50/50(internal)/66(internal)MHz
Chip Set
Unidentified
Max. Onboard DRAM
128MB
Cache
128/256/512KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
32-bit VESA local bus slots (2), CPU slot
NPU Options
None

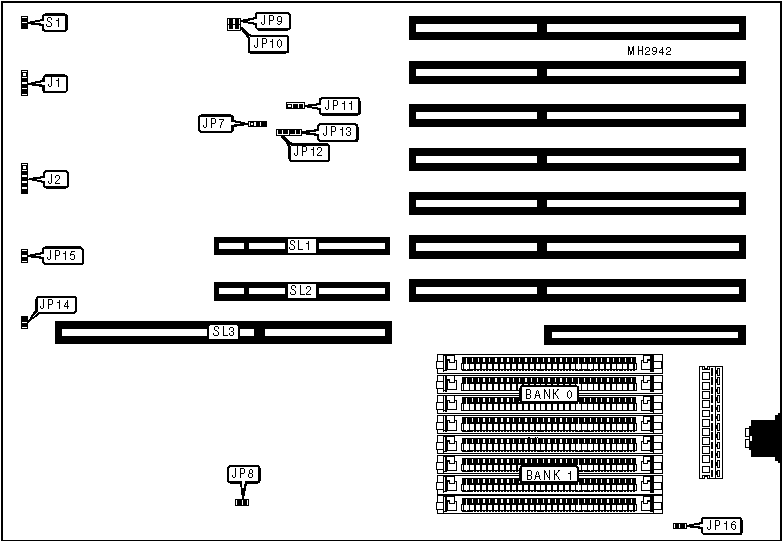

CONNECTIONS
Purpose
Location
Purpose
Location
Speaker
J1
32-bit VESA local bus slots
SL1 & SL2
Power LED & keylock
J2
CPU slot
SL3
Reset switch
S1

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Factory configured - do not alter
JP7
pins 2 & 3 closed
»
Monitor type select monochrome
JP8
Open

Monitor type select color
JP8
Closed
»
Factory configured - do not alter
JP12
Closed
»
Factory configured - do not alter
JP13
Closed
»
Factory configured - do not alter
JP14
Open
»
Factory configured - do not alter
JP15
Open
»
Factory configured - do not alter
JP16
Closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
4MB
(4) 1M x 9
NONE
8MB
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
NONE
20MB
(4) 1M x 9
(4) 4M x 9
32MB
(4) 4M x 9
(4) 4M x 9
64MB
(4) 16M x 9
NONE
128MB
(4) 16M x 9
(4) 16M x 9

CPU SPEED CONFIGURATION
Speed
JP11
16MHz
pins 2 & 3 closed
20MHz
pins 2 & 3 closed
25MHz
pins 1 & 2 closed
33MHz
pins 1 & 2 closed
50iMHz
pins 1 & 2 closed
50MHz
pins 1 & 2 closed
66iMHz
pins 1 & 2 closed

BUS SPEED CONFIGURATION
CPU speed
JP9
JP10
<= 33MHz
Open
Open
> 33MHz
Closed
Closed

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Factory configured - do not alter
JP4
Open
»
Factory configured - do not alter
JP5
Closed

CACHE CONFIGURATION
Size
Bank 0
Bank 1
128KB
(4) 32K x 8
NONE
256KB
(4) 32K x 8
(4) 32K x 8
512MB
(4) 128K x 8
NONE

CACHE TAG CONFIGURATION
Size
U16
U25
U26
U27
128KB
(1) 16K or (1) 64K x 1
(1) 64K x 1
NONE
(1) 8K x 1
256KB
(1) 16K or (1) 64K x 1
(1) 64K x 1
(1) 8K x 1
(1) 8K x 1
512MB
(1) 64K x 1
(1) 64K x 1
NONE
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP6
JP8
JP9
JP10
JP11
JP12
JP13
128KB
1 & 2
Closed
Open
Open
Closed
Open
Open
256KB
2 & 3
Closed
Closed
Open
Closed
Closed
Open
512MB
1 & 2
Closed
Closed
Closed
Closed
Closed
Closed
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION
Type
JP1
JP2
JP3
80486SX
pins 2 & 3 closed
pins 2 & 3 closed
Open
80487SX
pins 1 & 2, 3 & 4 closed
pins 2 & 3 closed
pins 1 & 2 closed
80486DX
pins 1 & 2, 3 & 4 closed
pins 2 & 3 closed
pins 2 & 3 closed
80486DX2
pins 1 & 2, 3 & 4 closed
pins 2 & 3 closed
pins 2 & 3 closed

CPU SPEED CONFIGURATION
Size
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
JP14
16MHz
Off
On
Off
On
On
Off
On
Off
1 & 2
20MHz
Off
Off
Off
On
On
Off
On
Off
1 & 2
25MHz
Off
On
On
Off
On
Off
On
Off
1 & 2
33MHz
Off
Off
On
Off
On
Off
On
Off
1 & 2
50iMHz
Off
On
On
Off
On
Off
On
Off
1 & 2
66iMHz
Off
Off
On
Off
On
Off
On
Off
1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION (CON’T)
Speed
JP7
16MHz
Closed
20MHz
Closed
25MHz
Open
33MHz
Open
50iMHz
Open
50MHz
Open
66iMHz
Open

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

WYSE SERIES 6000I (MODEL 650) Motherboard Settings and Configuration

Search

My Books

Discover

Processor	80486SX/80487SX/80486DX/80486DX2
Processor Speed	16/20/25/33/50/50(internal)/66(internal)MHz
Chip Set	Unidentified
Max. Onboard DRAM	128MB
Cache	128/256/512KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	32-bit VESA local bus slots (2), CPU slot
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J1	32-bit VESA local bus slots	SL1 & SL2
Power LED & keylock	J2	CPU slot	SL3
Reset switch	S1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP7	pins 2 & 3 closed
»	Monitor type select monochrome	JP8	Open
	Monitor type select color	JP8	Closed
»	Factory configured - do not alter	JP12	Closed
»	Factory configured - do not alter	JP13	Closed
»	Factory configured - do not alter	JP14	Open
»	Factory configured - do not alter	JP15	Open
»	Factory configured - do not alter	JP16	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9
64MB	(4) 16M x 9	NONE
128MB	(4) 16M x 9	(4) 16M x 9

CPU SPEED CONFIGURATION
Speed	JP11
16MHz	pins 2 & 3 closed
20MHz	pins 2 & 3 closed
25MHz	pins 1 & 2 closed
33MHz	pins 1 & 2 closed
50iMHz	pins 1 & 2 closed
50MHz	pins 1 & 2 closed
66iMHz	pins 1 & 2 closed

BUS SPEED CONFIGURATION
CPU speed	JP9	JP10
<= 33MHz	Open	Open
> 33MHz	Closed	Closed

CACHE CONFIGURATION
Size	Bank 0	Bank 1
128KB	(4) 32K x 8	NONE
256KB	(4) 32K x 8	(4) 32K x 8
512MB	(4) 128K x 8	NONE

CACHE TAG CONFIGURATION
Size	U16	U25	U26	U27
128KB	(1) 16K or (1) 64K x 1	(1) 64K x 1	NONE	(1) 8K x 1
256KB	(1) 16K or (1) 64K x 1	(1) 64K x 1	(1) 8K x 1	(1) 8K x 1
512MB	(1) 64K x 1	(1) 64K x 1	NONE	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP6	JP8	JP9	JP10	JP11	JP12	JP13
128KB	1 & 2	Closed	Open	Open	Closed	Open	Open
256KB	2 & 3	Closed	Closed	Open	Closed	Closed	Open
512MB	1 & 2	Closed	Closed	Closed	Closed	Closed	Closed
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION
Type	JP1	JP2	JP3
80486SX	pins 2 & 3 closed	pins 2 & 3 closed	Open
80487SX	pins 1 & 2, 3 & 4 closed	pins 2 & 3 closed	pins 1 & 2 closed
80486DX	pins 1 & 2, 3 & 4 closed	pins 2 & 3 closed	pins 2 & 3 closed
80486DX2	pins 1 & 2, 3 & 4 closed	pins 2 & 3 closed	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Size	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8	JP14
16MHz	Off	On	Off	On	On	Off	On	Off	1 & 2
20MHz	Off	Off	Off	On	On	Off	On	Off	1 & 2
25MHz	Off	On	On	Off	On	Off	On	Off	1 & 2
33MHz	Off	Off	On	Off	On	Off	On	Off	1 & 2
50iMHz	Off	On	On	Off	On	Off	On	Off	1 & 2
66iMHz	Off	Off	On	Off	On	Off	On	Off	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION (CON’T)
Speed	JP7
16MHz	Closed
20MHz	Closed
25MHz	Open
33MHz	Open
50iMHz	Open
50MHz	Open
66iMHz	Open
