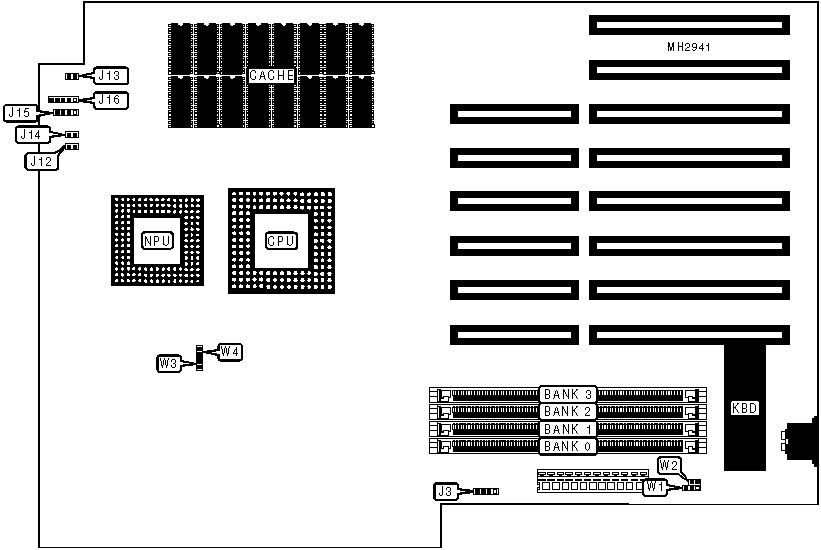

WYSE SERIES 6000I (MODEL 640) Motherboard Settings and Configuration

Processor	80486SX
Processor Speed	33MHz
Chip Set	Unidentified
Max. Onboard DRAM	16MB
Cache	128KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	4167

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J3	Turbo LED	J14
Reset switch	J12	Speaker	J15
Turbo switch	J13	Power LED & keylock	J16

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	W1	pins 2 & 3 closed
	Monitor type select monochrome	W1	pins 1 & 2 closed
»	Factory configured - do not alter	W2	Open
»	Factory configured - do not alter	W3	Open
»	Factory configured - do not alter	W4	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	NONE	NONE	NONE
2MB	(1) 256K x 36	(1) 256K x 36	NONE	NONE
3MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	NONE
4MB	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
4MB	(1) 1M x 36	NONE	NONE	NONE
5MB	(1) 1M x 36	(1) 256K x 36	NONE	NONE
6MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	NONE
7MB	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36	(1) 256K x 36
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
9MB	(1) 1M x 36	(1) 1M x 36	(1) 256K x 36	NONE
10MB	(1) 1M x 36	(1) 1M x 36	(1) 256K x 36	(1) 256K x 36
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36

CACHE CONFIGURATION

128KB cache is factory installed and is not configurable.
