80386SX-25 Motherboard Settings and Configuration

PEACOCK AG

80386SX-25

Processor
80386SX
Processor Speed
25MHz
Chip Set
Unidentified
Max. Onboard DRAM
16MB
Cache
None
BIOS
AMI/Award
Dimensions
330mm x 218mm
I/O Options
Floppy drive interface, IDE interface, parallel port, serial ports (2)
NPU Options
80387SX

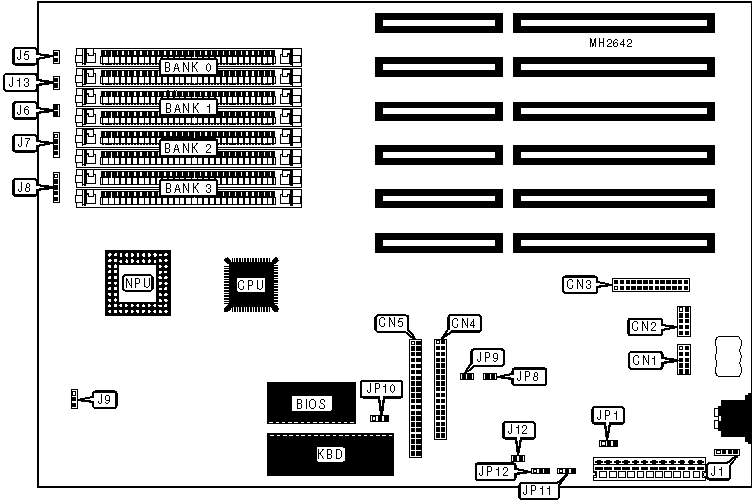

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port 1
CN1
Turbo LED
J5
Serial port 2
CN2
Reset switch
J6
Parallel port
CN3
Speaker
J7
Floppy drive interface
CN4
Power LED & keylock
J8
IDE interface
CN5
IDE interface LED
J12
External battery
J1
Turbo switch
J13

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Power good signal detect from board
JP1
pins 1 & 2 closed

Power good signal detect from power supply
JP1
pins 2 & 3 closed
»
Monitor type select color
JP10
pins 2 & 3 closed

Monitor type select monochrome
JP10
pins 1 & 2 closed
»
Battery type select internal
JP11
pins 1 & 2 closed

Battery type select external
JP11
pins 2 & 3 closed
»
CMOS memory normal operation
JP12
pins 1 & 2 closed

CMOS memory clear
JP12
pins 2 & 3 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
512KB
(2) 256K x 9
NONE
NONE
NONE
1MB
(2) 256K x 9
(2) 256K x 9
NONE
NONE
1.5MB
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
NONE
2MB
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
2MB
(2) 1M x 9
NONE
NONE
NONE
3MB
(2) 256K x 9
(2) 256K x 9
(2) 1M x 9
NONE
4MB
(2) 1M x 9
(2) 1M x 9
NONE
NONE
5MB
(2) 256K x 9
(2) 256K x 9
(2) 1M x 9
(2) 1M x 9
6MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
NONE
8MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
9MB
(2) 256K x 9
(2) 256K x 9
(2) 4M x 9
NONE
10MB
(2) 1M x 9
(2) 4M x 9
NONE
NONE
16MB
(2) 4M x 9
(2) 4M x 9
NONE
NONE

DRAM JUMPER CONFIGURATION
Size
J9
512KB
pins 1 & 2 closed
1MB
pins 1 & 2 closed
1.5MB
pins 1 & 2 closed
2MB
pins 1 & 2 closed
2MB
pins 1 & 2 closed
3MB
pins 1 & 2 closed
4MB
pins 1 & 2 closed
5MB
pins 1 & 2 closed
6MB
pins 1 & 2 closed
8MB
pins 1 & 2 closed
9MB
pins 2 & 3 closed
10MB
pins 2 & 3 closed
16MB
pins 2 & 3 closed

IDE CONFIGURATION
Setting
JP8
JP9
On board IDE enabled
Closed
Closed
On board IDE disabled
Open
Open
