PEACOCK AG
80386DX-40 (SYMPHONY)
Processor | 80386DX |
Processor Speed | 40MHz |
Chip Set | Symphony |
Max. Onboard DRAM | 32MB |
Cache | 128KB |
BIOS | AMI |
Dimensions | 330mm x 218mm |
I/O Options | Floppy drive interface, IDE interface, parallel port, serial ports (2) |
NPU Options | 80387DX/3167 |

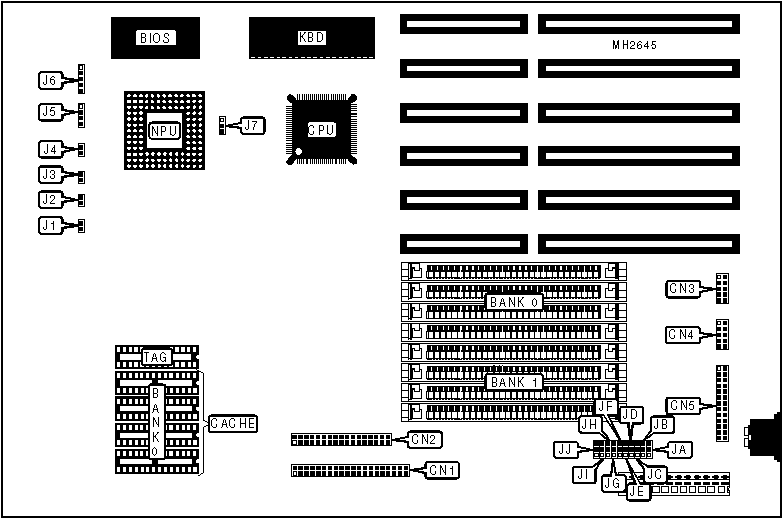

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
IDE interface | CN1 | Turbo LED | J2 |
Floppy drive interface | CN2 | Turbo switch | J3 |
Serial port 1 | CN3 | Reset switch | J4 |
Serial port 2 | CN4 | Speaker | J5 |
Parallel port | CN5 | Power LED & keylock | J6 |
IDE interface LED | J1 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | NPU synchronous with CPU | J7 | pins 1 & 2 closed |
NPU asynchronous with CPU | J7 | pins 2 & 3 closed | |
» | Parallel port unidirectional (printer) | JG | pins 1 & 2 closed |
Parallel port bidirectional | JG | pins 2 & 3 closed | |
» | IDE interface enabled | JH | pins 1 & 2 closed |
IDE interface disabled | JH | pins 2 & 3 closed | |
» | Floppy drive interface enabled | JI | pins 1 & 2 closed |
Floppy drive interface disabled | JI | pins 2 & 3 closed | |
» | Monitor type select color | JJ | pins 2 & 3 closed |
Monitor type select monochrome | JJ | pins 1 & 2 closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (4) 256K x 9 | NONE |
2MB | (4) 256K x 9 | (4) 256K x 9 |
4MB | (4) 1M x 9 | NONE |
5MB | (4) 1M x 9 | (4) 256K x 9 |
5MB | (4) 256K x 9 | (4) 1M x 9 |
8MB | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 4M x 9 | NONE |
17MB | (4) 256K x 9 | (4) 4M x 9 |
17MB | (4) 4M x 9 | (4) 256K x 9 |
20MB | (4) 4M x 9 | (4) 1M x 9 |
20MB | (4) 1M x 9 | (4) 4M x 9 |
32MB | (4) 4M x 9 | (4) 4M x 9 |
PARALLEL PORT CONFIGURATION | ||
Setting | JE | JF |
Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
278H | pins 2 & 3 closed | pins 1 & 2 closed |
378H | pins 1 & 2 closed | pins 2 & 3 closed |
3BCH | pins 2 & 3 closed | pins 2 & 3 closed |
SERIAL PORT 1 CONFIGURATION | ||
Setting | JA | JB |
Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
2E8H | pins 2 & 3 closed | pins 2 & 3 closed |
3E8H | pins 1 & 2 closed | pins 2 & 3 closed |
3F8H | pins 2 & 3 closed | pins 1 & 2 closed |
SERIAL PORT 2 CONFIGURATION | ||
Setting | JC | JD |
Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
2E8H | pins 1 & 2 closed | pins 2 & 3 closed |
2F8H | pins 2 & 3 closed | pins 1 & 2 closed |
3E8H | pins 2 & 3 closed | pins 2 & 3 closed |
