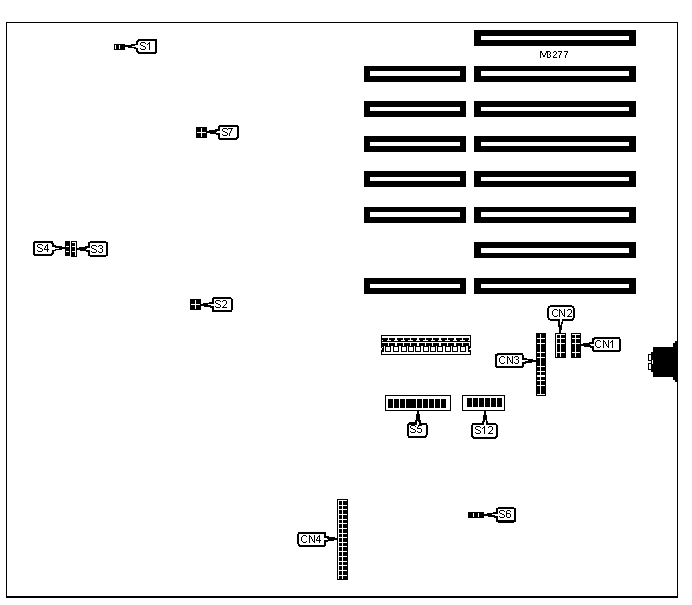

POWERMATE 2 (G9ZXW) Motherboard Settings and Configuration

Processor	80286 (exact location unidentified)
Processor Speed	8/10MHz
Chip Set	Unidentified
Maximum Onboard Memory	10MB (on external memory cards)
Cache	None
BIOS	Unidentified
Dimensions	355mm x 305mm
I/O Options	Floppy drive interface, parallel port, serial ports (2)
NPU Options	80287 (exact location unidentified)

CONNECTIONS
Function	Label	Function	Label
Serial port	CN1	Parallel port	CN3
Serial port	CN2	Floppy drive interface	CN4

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	S1	Open
»	Programmable ROM normal operation	S3	Pins 2 & 3 closed
	Programmable ROM mask ROM	S3	Pins 1 & 2 closed
»	BIOS type select 27256	S4	Pins 2 & 3 closed
	BIOS type select 27128	S4	Pins 1 & 2 closed
»	Factory configured - do not alter	S5/1	Off
»	Factory configured - do not alter	S5/2	Off
»	Factory configured - do not alter	S5/3	Off
»	Parallel port enabled	S5/4	On
	Parallel port disabled	S5/4	Off
»	Serial port channel 1 enabled	S5/5	On
	Serial port channel 1 disabled	S5/5	Off
»	Serial port channel 2 enabled	S5/6	On
	Serial port channel 2 disabled	S5/6	Off
»	Factory configured - do not alter	S5/7	On
»	Floppy drive interface enabled	S5/8	On
	Floppy drive interface disabled	S5/8	Off
»	Secondary floppy drive I/O port enabled	S5/9	On
	Secondary floppy drive I/O port disabled	S5/9	Off
»	Monitor type select color	S5/10	On
	Monitor type select monochrome	S5/10	Off
»	Factory configured - do not alter	S6	Pins 2 & 3 closed
»	2 wait states at 10MHz/1 wait state at 8MHz	S7	Pins 1 & 2 closed
	1 wait state at 8MHz or 10MHz	S7	Pins 3 & 4 closed
»	Factory configured - do not alter	S12/1	On
»	Factory configured - do not alter	S12/2	Off
»	Factory configured - do not alter	S12/3	On
»	Factory configured - do not alter	S12/4	On
»	Factory configured - do not alter	S12/5	On
»	ROM type select IBM	S12/6	On
	ROM type select APC	S12/6	Off

DRAM

Note: The orientation and location of the DRAM is unidentified.

DRAM JUMPER
Bank 0	Bank 0	S2
256KB	64KB	Pins 1 & 2 closed
256KB	None	Pins 3 & 4 closed
256KB	256KB	Open

DRAM

Note: The orientation and chip sizes are unidentified.

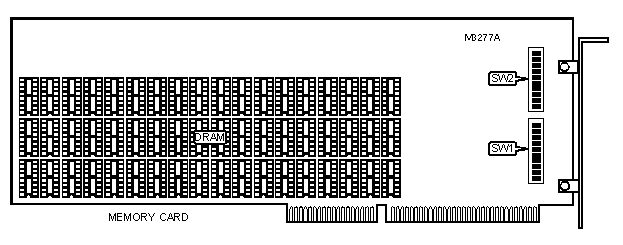

MEMORY CARD SWITCHES
Expansion cards installed	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5
1	Off	Off	Off	On	Off
2	Off	Off	On	On	Off
3	Off	On	Off	On	Off
4	Off	On	On	On	Off
5	On	Off	Off	On	Off

MEMORY CARD SWITCHES (CON’T)
Expansion cards installed	SW1/6	SW1/7	SW1/8	SW1/9	SW1/10
1	Off	Off	Off	On	On
2	Off	Off	On	On	On
3	Off	On	Off	On	On
4	Off	On	On	On	On
5	On	Off	Off	On	On

MEMORY CARD SWITCHES (CON’T)
Expansion cards installed	SW2/1	SW2/2	SW2/3	SW2/4	SW2/5
1	Off	Off	On	Off	Off
2	Off	On	Off	Off	Off
3	Off	On	On	Off	Off
4	On	Off	Off	Off	Off
5	On	Off	On	Off	Off

MEMORY CARD SWITCHES (CON’T)
Expansion cards installed	SW2/6	SW2/7	SW2/8	SW2/9	SW2/10
1	Off	Off	On	Off	On
2	Off	On	Off	Off	On
3	Off	On	On	Off	On
4	On	Off	Off	Off	On
5	On	Off	On	Off	On

MISCELLANEOUS TECHNICAL NOTE

The location of pin 1 and switch 1 on all jumpers and switches is unidentified.
