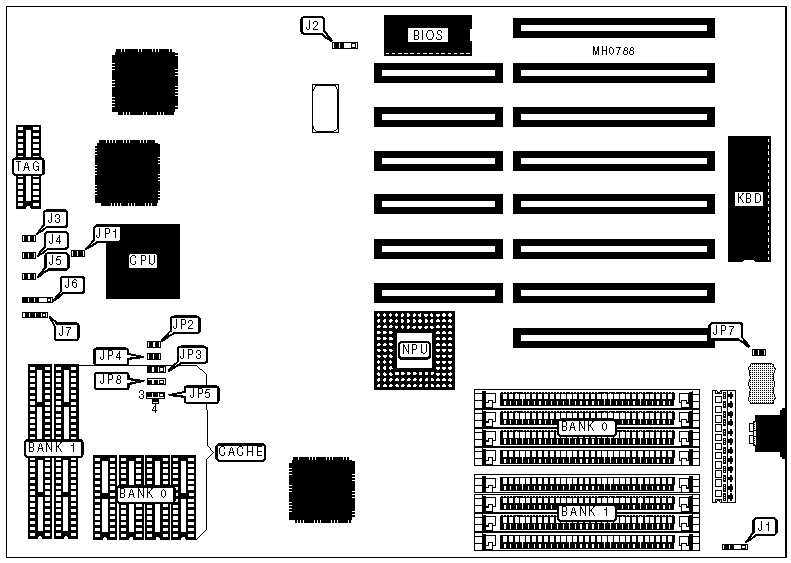

A340C-G02 Motherboard Settings and Configuration

Processor	80386DX
Processor Speed	33/40MHz
Chip Set	ETEQ
Max. Onboard DRAM	32MB
Cache	64/128/256KB
Dimensions	330mm x 218mm
BIOS	AMI
I/O Options	None
NPU Options	80387/3167

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Turbo LED	J5
External battery	J2	Power LED & keylock	J6
Reset switch	J3	Speaker	J7
Turbo switch	J4
Note:Either connector J1 or J2 may be used to connect the external battery.

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CPU speed switchable from turbo switch	JP1	Open
	CPU speed switchable from turbo switch or keyboard	JP1	Closed
»	Battery type select internal	JP7	Closed
	Battery type select external	JP7	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	NONE	(1) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP2	JP3	JP4	JP5	JP8
64KB	Open	1 & 2	Open	1 & 2	1 & 2
128KB	Closed	2 & 3	Closed	2 & 3	1 & 2
256KB	Closed	2 & 3	Closed	2 & 4	2 & 3
Note: Pins designated should be in the closed position.
