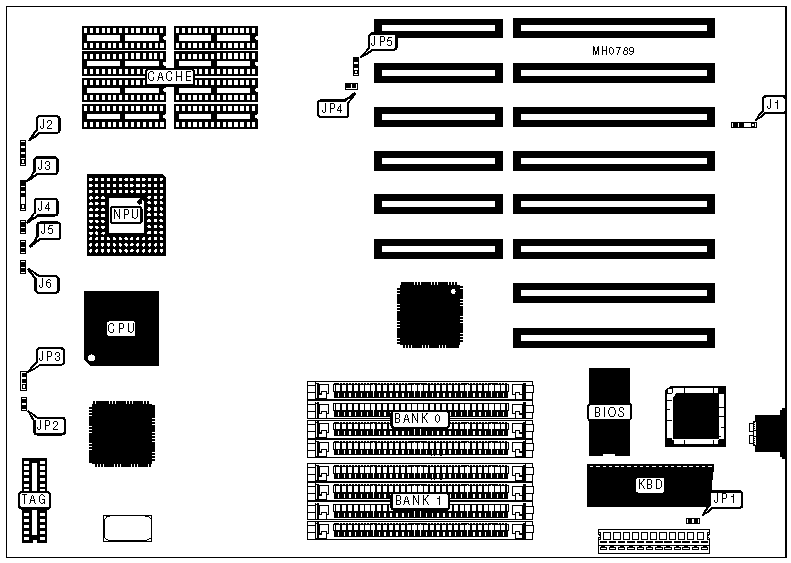

A340C-G01 Motherboard Settings and Configuration
J-BOND COMPUTER SYSTEMS CORPORATION
A340C-G01
Processor | 80386DX |
Processor Speed | 33/40MHz |
Chip Set | ETEQ |
Max. Onboard DRAM | 32MB |
Cache | 64/256KB |
Dimensions | 330mm x 218mm |
BIOS | AMI |
I/O Options | None |
NPU Options | 80387/3167 |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
External battery | J1 | Turbo switch | J4 |
Speaker | J2 | Turbo LED | J5 |
Power LED & keylock | J3 | Reset switch | J6 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
| » | CPU speed switchable from turbo switch | JP1 | Open |
| » | CPU speed switchable from turbo switch or keyboard | JP1 | Closed |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (4) 256K x 9 | NONE |
2MB | (4) 256K x 9 | (4) 256K x 9 |
4MB | (4) 1M x 9 | NONE |
8MB | (4) 1M x 9 | (4) 1M x 9 |
16MB | (4) 4M x 9 | NONE |
32MB | (4) 4M x 9 | (4) 4M x 9 |
CACHE CONFIGURATION | ||
Size | Bank 0 | TAG |
64KB | (8) 8K x 8 | (1) 8K x 8 |
256KB | (8) 32K x 8 | (1) 32K x 8 |
CACHE JUMPER CONFIGURATION | ||||
Size | JP2 | JP3 | JP4 | JP5 |
64KB | Open | pins 1 & 2 closed | Open | pins 1 & 2 closed |
256KB | Closed | pins 2 & 3 closed | Closed | pins 1 & 2 closed |
