SUPER 286C (REV. C THRU F8) Motherboard Settings and Configuration

Processor	80286
Processor Speed	10MHz
Chip Set	VLSI
Max. Onboard DRAM	1MB
Cache	None
BIOS	Award
Dimensions	355mm x 304mm
I/O Options	Serial port, parallel port, floppy drive interface
NPU Options	80287

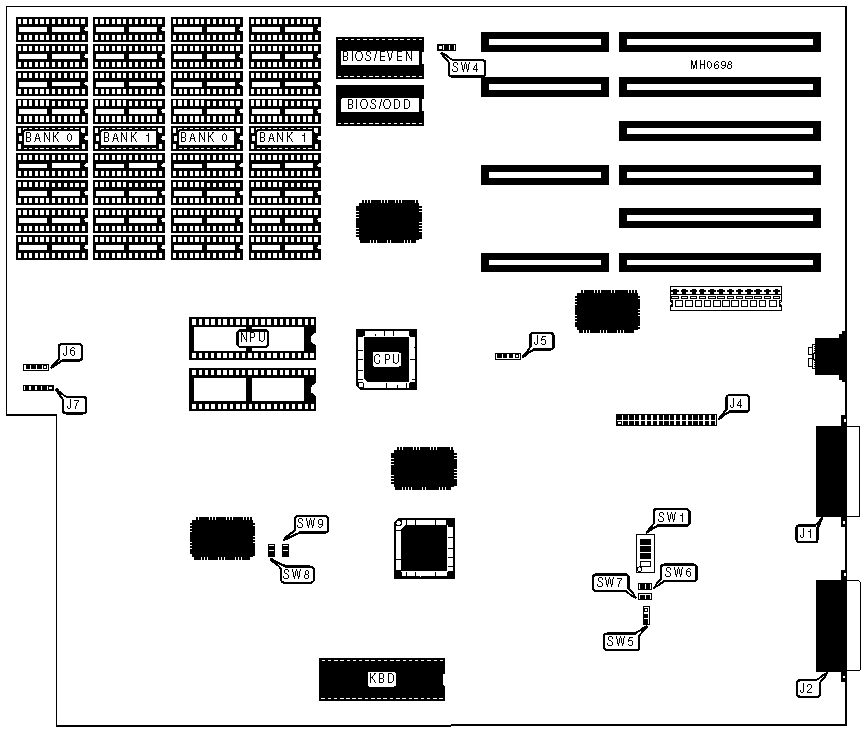

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port	J1	Speaker	J6
Parallel port	J2	Power LED & keylock	J7
External battery	J5

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	CPU speed select 10MHz	SW1/3	On
	CPU speed select 8MHz	SW1/3	Off
»	Monitor type select color	SW1/4	On
	Monitor type select monochrome	SW1/4	Off
»	Factory configured - do not alter	SW2	pins 1 & 2 closed
»	CS ROM	SW3	pins 1 & 2 closed
	XMEMR	SW3	pins 2 & 3 closed
»	BIOS type select 27256	SW4	pins 2 & 3 closed
	BIOS type select 27128	SW4	pins 1 & 2 closed
»	Floppy drive mode select single speed	SW5	pins 1 & 2 closed
	Floppy drive mode select dual speed	SW5	pins 2 & 3 closed
»	COM1 enabled (IRQ4)	SW6 & SW9	Closed
	COM1 disabled	SW6 & SW9	Open
»	Factory configured - do not alter	SW7	Closed
»	Factory configured - do not alter	SW8	Closed
Note:The locations of SW2 & SW3 are unidentified.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(18) 41256	NONE
640KB	(18) 41256	(18) 4164
1MB	(18) 41256	(18) 41256

DRAM SWITCH CONFIGURATION
Size	SW1/switch 1	SW1/switch 2
512KB	Off	On
640KB	On	Off
1MB	Off	Off
