PROFESSIONAL WORKSTATION 5000 Motherboard Settings and Configuration






COMPAQ COMPUTER CORPORATION

PROFESSIONAL WORKSTATION 5000

Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

200MHz

Chip Set

Unidentified

Video Chip Set

Matrox

Maximum Onboard Memory

512MB (EDO & SDRAM supported)

Maximum Video Memory

8MB

Cache

256KB (located on Pentium Pro CPU)

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

VRM connectors (2), riser slot

NPU Options

None

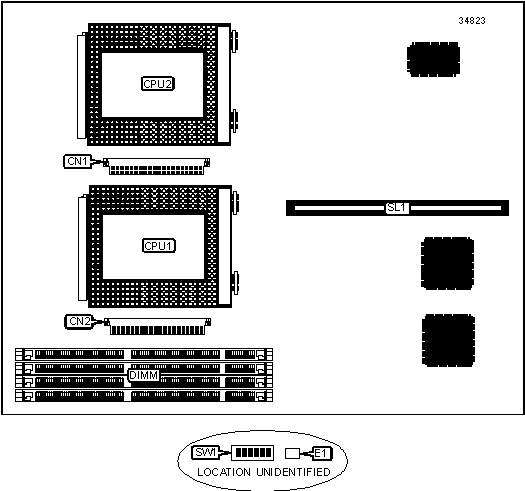

CONNECTIONS

Purpose

Location

Purpose

Location

VRM connector 2

CN1

Riser slot

SL1

VRM connector 1

CN2



Note: The types of all other connectors are unidentified.

USER CONFIGURABLE SETTINGS

Function

Label

Position

Password enabled

SW1/1

Off



Password disabled

SW1/1

On

DIMM CONFIGURATION

Size

Bank 0

Bank 1

32MB

(1) 4M x 64

None

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 32M x 64

None

256MB

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

CACHE CONFIGURATION

Note: 256KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: Board accepts 2MB/6MB/8MB of video memory. The location and chip type is unidentified.

CPU CORE FREQUENCY SELECTION

Core frequency

SW1/3

SW1/4

SW1/5

SW1/6



2/4

On

On

On

On



2/5

On

On

On

Off

2/6

On

On

Off

On



2/7

On

On

Off

Off



2/8

On

Off

On

On



2/9

On

Off

On

Off



2/10

On

Off

Off

On



2/11

On

Off

Off

Off

CPU BUS SPEED SELECTION

Speed

SW1/2

60MHz

Off



66MHz

On

BATTERY SELECTION

Setting

E1



External battery connection

Pins 1 4 closed



External battery jumper

Pins 5 & 6 closed

Internal battery jumper

Pins 6 & 7 closed
