SYSTEMPRO 486/33E Motherboard Settings and Configuration

COMPAQ COMPUTER CORPORATION

SYSTEMPRO 486/33E

Processor	80486DX
Processor Speed	33MHz
Chip Set	Intel
Max. Onboard DRAM	192MB (on two system memory cards)
Cache	None
BIOS	Compaq
Dimensions	330mm x 218mm
I/O Options	System processor card slot, proprietary system memory card
NPU Options	None

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Password disabled	E1	pins 1 & 2 closed
	Password enabled	E1	pins 2 & 3 closed
»	Factory configured - do not alter	E2	N/A
»	Maintenance mode disabled	E3	pins 2 & 3 closed
	Maintenance mode enabled	E3	pins 1 & 2 closed
	Onboard VGA controller enabled	E4	pins 1 & 2 closed
	Onboard VGA controller disabled	E4	pins 2 & 3 closed
Note: Location of jumpers on mainboard is not indicated

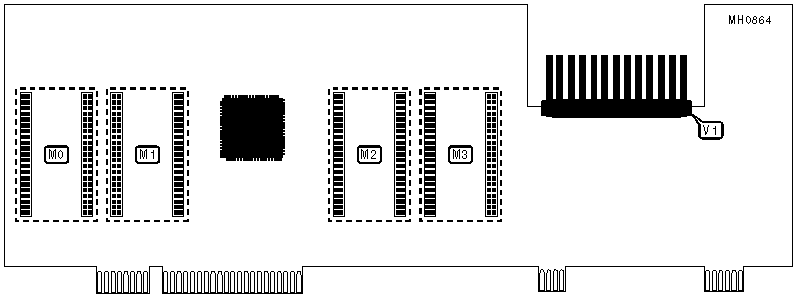

SYSTEM MEMORY CARD (Model 1370)

CONNECTIONS
Purpose	Location
VGA pass through	V1

DRAM CONFIGURATION FOR FOUR SOCKET MEMORY CARD MODEL 1370
Size	M0	M1	M2	M3
2MB	2MB module	NONE	NONE	NONE
4MB	2MB module	2MB module	NONE	NONE
6MB	2MB module	2MB module	2MB module	NONE
8MB	2MB module	2MB module	2MB module	2MB module
8MB	8MB module (2 plug)	-----------------	NONE	NONE
8MB	8MB module	NONE	NONE	NONE
10MB	8MB module (2 plug)	-----------------	2MB module	NONE
10MB	8MB module	2MB module	NONE	NONE
12MB	8MB module (2 plug)	-----------------	2MB module	2MB module
12MB	8MB module	2MB module	2MB module	NONE
14MB	8MB module	2MB module	2MB module	2MB module
16MB	8MB module (2 plug)	-----------------	8MB module (2 plug)	-----------------
16MB	8MB module	8MB module	NONE	NONE
18MB	8MB module	8MB module	2MB module	NONE
18MB	8MB module (2 plug)	-----------------	8MB module	2MB module
20MB	8MB module	8MB module	2MB module	2MB module
24MB	8MB module (2 plug)	-----------------	8MB module	8MB module
24MB	8MB module	8MB module	8MB module	NONE
26MB	8MB module	8MB module	8MB module	2MB module
32MB	8MB module	8MB module	8MB module	8MB module
32MB	32MB module (2 plug)	-----------------	NONE	NONE
34MB	32MB module (2 plug)	-----------------	2MB module	NONE
36MB	32MB module (2 plug)	-----------------	2MB module	2MB module
40MB	32MB module (2 plug)	-----------------	8MB module (2 plug)	-----------------
40MB	32MB module (2 plug)	-----------------	8MB module	NONE
42MB	32MB module (2 plug)	-----------------	8MB module	2MB module
48MB	32MB module (2 plug)	-----------------	8MB module	8MB module
64MB	32MB module (2 plug)	-----------------	32MB module (2 plug)	-----------------
Note: The system memory card uses proprietary memory modules, some require only one module space on the memory board, while others require two. In the cases where a double size module is used, the following space is marked with "-----------------", designating that space as occupied.

DRAM CONFIGURATION FOR SIX SOCKET MEMORY CARD MODEL 116569-001
Size	M0	M1	M2	M3	M4	M5
2MB	2MB	NONE	NONE	NONE	NONE	NONE
4MB	2MB	2MB	NONE	NONE	NONE	NONE
6MB	2MB	2MB	2MB	NONE	NONE	NONE
8MB	2MB	2MB	2MB	2MB	NONE	NONE
8MB	8MB	NONE	NONE	NONE	NONE	NONE
8MB	8MB	-----------------	NONE	NONE	NONE	NONE
10MB	2MB	2MB	2MB	2MB	2MB	NONE
10MB	8MB	2MB	NONE	NONE	NONE	NONE
10MB	8MB	-----------------	2MB	NONE	NONE	NONE
12MB	2MB	2MB	2MB	2MB	2MB	2MB
12MB	8MB	2MB	2MB	NONE	NONE	NONE
12MB	8MB	-----------------	2MB	2MB	NONE	NONE
14MB	8MB	2MB	2MB	2MB	NONE	NONE
14MB	8MB	-----------------	2MB	2MB	2MB	NONE
16MB	8MB	2MB	2MB	2MB	2MB	NONE
16MB	8MB	-----------------	2MB	2MB	2MB	2MB
16MB	8MB	8MB	NONE	NONE	NONE	NONE
16MB	8MB	-----------------	8MB	NONE	NONE	NONE
16MB	8MB	-----------------	8MB	-----------------	NONE	NONE
18MB	8MB	2MB	2MB	2MB	2MB	2MB
18MB	8MB	8MB	2MB	NONE	NONE	NONE
18MB	8MB	-----------------	8MB	2MB	NONE	NONE
18MB	8MB	-----------------	8MB	-----------------	2MB	NONE
20MB	8MB	8MB	2MB	2MB	NONE	NONE
20MB	8MB	-----------------	8MB	2MB	2MB	NONE
20MB	8MB	-----------------	8MB	-----------------	2MB	2MB
22MB	8MB	8MB	2MB	2MB	2MB	NONE
22MB	8MB	-----------------	8MB	2MB	2MB	2MB
24MB	8MB	8MB	2MB	2MB	2MB	2MB
24MB	8MB	8MB	8MB	NONE	NONE	NONE
24MB	8MB	-----------------	8MB	8MB	NONE	NONE

DRAM CONFIGURATION FOR SIX SOCKET MEMORY CARD MODEL 116569-001 (CON'T)
24MB	8MB	-----------------	8MB	-----------------	8MB	NONE
24MB	8MB	-----------------	8MB	-----------------	8MB	-----------------
26MB	8MB	8MB	8MB	2MB	NONE	NONE
26MB	8MB	-----------------	8MB	8MB	2MB	NONE
26MB	8MB	-----------------	8MB	-----------------	8MB	2MB
28MB	8MB	8MB	8MB	2MB	2MB	NONE
28MB	8MB	-----------------	8MB	8MB	2MB	2MB
30MB	8MB	8MB	8MB	2MB	2MB	2MB
32MB	8MB	8MB	8MB	8MB	NONE	NONE
32MB	8MB	-----------------	8MB	8MB	8MB	NONE
32MB	8MB	-----------------	8MB	-----------------	8MB	8MB
32MB	32MB	-----------------	NONE	NONE	NONE	NONE
34MB	8MB	8MB	8MB	8MB	2MB	NONE
34MB	8MB	-----------------	8MB	8MB	8MB	2MB
34MB	32MB	-----------------	2MB	NONE	NONE	NONE
36MB	8MB	8MB	8MB	8MB	2MB	2MB
36MB	32MB	-----------------	2MB	2MB	NONE	NONE
40MB	8MB	8MB	8MB	8MB	8MB	NONE
40MB	8MB	-----------------	8MB	8MB	8MB	8MB
40MB	32MB	-----------------	2MB	2MB	2MB	2MB
40MB	32MB	-----------------	8MB	NONE	NONE	NONE
40MB	32MB	-----------------	8MB	-----------------	NONE	NONE
42MB	8MB	8MB	8MB	8MB	8MB	2MB
42MB	32MB	-----------------	8MB	2MB	NONE	NONE
42MB	32MB	-----------------	8MB	-----------------	2MB	NONE
48MB	8MB	8MB	8MB	8MB	8MB	8MB
48MB	32MB	-----------------	8MB	8MB	NONE	NONE
48MB	32MB	-----------------	8MB	-----------------	8MB	-----------------
50MB	32MB	-----------------	8MB	8MB	2MB	NONE
50MB	32MB	-----------------	8MB	8MB	-----------------	2MB
52MB	32MB	-----------------	8MB	8MB	2MB	2MB
56MB	32MB	-----------------	8MB	8MB	8MB	NONE
56MB	32MB	-----------------	8MB	-----------------	8MB	8MB
58MB	32MB	-----------------	8MB	8MB	8MB	2MB
64MB	32MB	-----------------	8MB	8MB	8MB	8MB
64MB	32MB	-----------------	32MB	-----------------	NONE	NONE
66MB	32MB	-----------------	32MB	-----------------	2MB	NONE
68MB	32MB	-----------------	32MB	-----------------	2MB	2MB
72MB	32MB	-----------------	32MB	-----------------	8MB	NONE
72MB	32MB	-----------------	32MB	-----------------	8MB	-----------------
74MB	32MB	-----------------	32MB	-----------------	8MB	2MB
80MB	32MB	-----------------	32MB	-----------------	8MB	8MB
96MB	32MB	-----------------	32MB	-----------------	32MB	-----------------
Note: The system memory card uses proprietary memory modules, some require only one module space on the memory board, while others require two. In the cases where a double size module is used, the following space is marked with "-----------------", designating that space as occupied.
