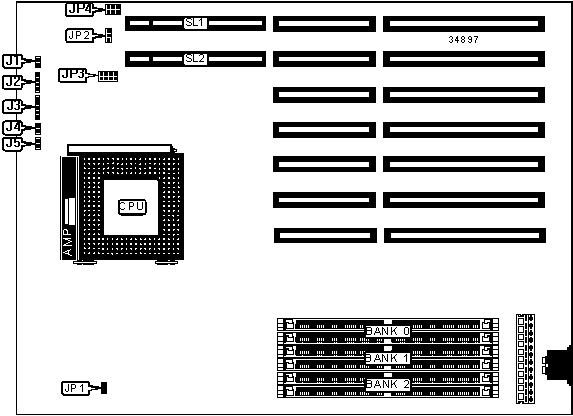

NX586 Motherboard Settings and Configuration

ALARIS, INC.

NX586

Device Type
Mainboard
Processor
Unidentified
Processor Speed
75/80/90MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
192MB
Maximum Video Memory
None
Cache
256KB
BIOS
AMI
Dimensions
254mm x 218mm
I/O Options
32-bit VESA local bus slots (2)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Reset switch
J1
Turbo LED
J5
Speaker
J2
External battery (optional)
J22
Power LED & keylock
J3
32-bit VESA local bus slots
SL1 & SL2
Turbo switch
J4

Note: The location of J22 is unidentified.

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
JP1
Open
»
CMOS memory normal operation
JP2
Pins 1 & 2 closed

CMOS memory clear
JP2
Pins 2 & 3 closed
»
Factory configured - do not alter
JP3
Unidentified
»
Factory configured - do not alter (VL-bus burst support)
JP4/pins 5 & 6
Closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(2) 1M x 36
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
16MB
(2) 2M x 36
None
None
24MB
(2) 2M x 36
(2) 1M x 36
None
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
None
32MB
(2) 2M x 36
(2) 2M x 36
None
40MB
(2) 4M x 36
(2) 1M x 36
None
48MB
(2) 4M x 36
(2) 2M x 36
None
48MB
(2) 4M x 36
(2) 1M x 36
(2) 1M x 36
56MB
(2) 4M x 36
(2) 2M x 36
(2) 1M x 36
64MB
(2) 8M x 36
None
None
64MB
(2) 4M x 36
(2) 4M x 36
None
80MB
(2) 8M x 36
(2) 2M x 36
None
80MB
(2) 8M x 36
(2) 1M x 36
(2) 1M x 36
88MB
(2) 8M x 36
(2) 2M x 36
(2) 1M x 36
96MB
(2) 8M x 36
(2) 4M x 36
None
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
96MB
(2) 8M x 36
(2) 2M x 36
(2) 2M x 36

SIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
104MB
(2) 8M x 36
(2) 4M x 36
(2) 1M x 36
112MB
(2) 8M x 36
(2) 4M x 36
(2) 2M x 36
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 16M x 36
None
None
128MB
(2) 8M x 36
(2) 8M x 36
None
136MB
(2) 8M x 36
(2) 8M x 36
(2) 1M x 36
136MB
(2) 16M x 36
(2) 1M x 36
None
144MB
(2) 16M x 36
(2) 2M x 36
None
144MB
(2) 16M x 36
(2) 1M x 36
(2) 1M x 36
152MB
(2) 16M x 36
(2) 2M x 36
(2) 1M x 36
160MB
(2) 16M x 36
(2) 4M x 36
None
160MB
(2) 16M x 36
(2) 2M x 36
(2) 2M x 36
168MB
(2) 16M x 36
(2) 4M x 36
(2) 1M x 36
176MB
(2) 16M x 36
(2) 4M x 36
(2) 2M x 36
192MB
(2) 16M x 36
(2) 8M x 36
None
192MB
(2) 16M x 36
(2) 4M x 36
(2) 4M x 36

CACHE CONFIGURATION
Note: 256KB cache is factory installed and is not configurable. The location is unidentified.

VL BUS SPEED SELECTION
Speed
JP4/pins 1 & 2
»
1
Closed

VL BUS SPEED SELECTION
Speed
JP4/pins 3 & 4

<= 33MHz
Open
»
>33 MHz
Closed
