BASKING COMBO modem/telephone/ISDN Settings and Configuration

Card Type	Modem (asynchronous), Sound card
Chip Set	Unidentified
I/O Options	Line in, microphone, speaker out, game/MIDI port
Maximum Modem Rate	56Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22A/B, V.22bis, V.23, V.32, V.32bis, V.34, V.FC, K56flex
Fax Modulation Protocol	ITU-T V.17, V.29, V.27ter, V.33, V.21CH2
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis
Fax Class	Class I
Data Bus	16-bit ISA
Card Size	Half-length, half-height card

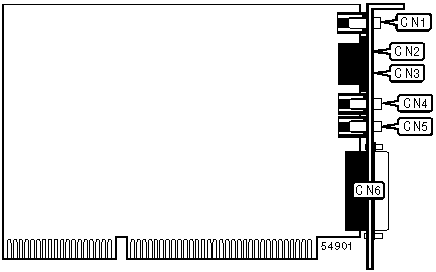

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Microphone		CN4
Line out		CN2		Speaker out		CN5
Line in		CN3		Game/MIDI port		CN6

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘+++’, A/

A, E, H, M, O, P, Q, T, V, X

&C, &P, &R, &V, &W, &Z

Extended AT Commands

\A, \B, \K, \N

%C, %E

Voice Commands

#BDR, #CID, #TL, #VBS, #VSD, #VGT

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S18, S25, S26

Special Commands

+MS

Note: See MHI Help File for full command documentation.

AUTOMODE CONTROL
Type:	Immediate
Format:	AT [cmds] Nn [cmds]
Description:	Controls the automode detection
Command	Function
N0	Disabled
N1	Enabled

COMMUNICATION PROTOCOLS
Type:	Configuration
Format:	AT [cmds] Bn [cmds]
Description:	Selects the communication protocol for data calls
Note: The B command allows the simultaneous selection of more than one suffix, enabling multiple protocols.
Command	Protocol
B0	ITU-T V.22 at 300 or 1200bps

COMPRESSION
Type:	Configuration
Format:	AT [cmds] &Kn [cmds]
Description:	Selects data compression
Command	Function
&K0	Data compression disabled
&K1	MNP5 enabled
&K2	V.42bis enabled
&K3	MNP5 and V.42bis; or data compression and correction enabled

CONNECT MESSAGE FORMAT
Type:	Configuration
Format:	AT [cmds] &An [cmds]
Description:	Sets the connect message format
Command	Function
í &A0	Only CONNECT message
&A1	CONNECT message and modulation indicator
&A2	CONNECT message, error detection protocol and data compression indicators
&A3	CONNECT message, error detection protocol, data compression indicators and modulation indicator

CONNECT MESSAGE SPEED SOURCE
Type:	Configuration
Format:	AT [cmds] &En [cmds]
Description:	Sets the requested source for the speed field in the CONNECT message.
Note: Used primarily for international data transmission
Command	Function
í &E0	DCE speed
&E1	DTE speed

DATA SET READY (DSR)
Type:	Configuration
Format:	AT [cmds] &Sn [cmds]
Description:	Selects DSR options
Command	Function
&S0	DSR forced high
&S1	DSR follows circuit definition

DATA TERMINAL READY (DTR)
Type:	Configuration
Format:	AT [cmds] &Dn [cmds]
Description:	Selects modem response to DTR
Command	Function
í &D0	Modem does not respond to DTR
&D1	Modem goes to command mode after DTR goes is off
&D2	Modem goes to command mode and disconnects (hangs up) after DTR goes off; Auto-Answer is disabled.
&D3	Modem is initialized after DTR goes off

DEFAULT CONFIGURATION
Type:	Configuration
Format:	AT [cmds] Yn [cmds]
Description:	Sets the default configuration
Command	Function
í Y0	Select user template 0
Y1	Select user template 1
Y2	Select factory setting 0
Y3	Select factory setting 1

DIAL
Type:	Immediate
Format:	AT [cmds] D<#> [cmds]
Description:	Dials telephone number according to any modifiers included in the string
Note:	Any combination of modifiers can be used to produce the desired dial functions in sequence.
Command	Function
DL	Re-dial last number
DP	Pulse dialing enabled
DS=n	Dial stored telephone number n
DT	Tone dialing enabled/Pulse dialing disabled
DW	Dialing resumed following dial tone detection
D,	Dialing paused for amount of time specified in S8 register
D!	Flash function initiated. Modem commanded to go off-hook for specified time before returning on-hook.
D@	Wait for Quite Answer function enabled. Modem waits until a "quiet answer," a ring-back signal followed by silence up to the time specified in S7, is received prior to executing the rest of the dial string.
D*	Tone only
D;	Modem returned to idle state after dialing. The semicolon can only be placed at the end of the dial command.

FACTORY DEFAULT PROFILE
Type:	Configuration
Format:	AT [cmds] &F [cmds]
Description:	Sets values in active profile to values found in the default profile
Command	Function
í &F0	Select factory setting 0
&F1	Select factory setting 1

FLOW CONTROL
Type:	Configuration
Format:	AT [cmds] &Hn [cmds]
Description:	Sets the flow control
Command	Function
í &H0	Disable flow control
&H1	Enable RTS/CTS emulation

REPORT INFORMATION
Type:	Immediate
Format:	AT [cmds] In [cmds]
Description:	Displays information requested
Command	Function
I1	Reports modem name, vendor number, version
I2	Reports software vendor and version number
I3	Reports chip vendor, ID number
I4	Reports modem active profile
I5	Reports stored profile 0 and active profile 0
I6	Reports stored profile 1 and active profile 1
I7	Reports stored phone numbers

SOFT RESET
Type:	Immediate
Format:	AT [cmds] Zn [cmds]
Description:	Restores modem profiles previously saved in non-volatile RAM using the &W command.
Command	Function
Z0	Select default user template in Y
Z1	Select user template 0
Z2	Select user template 1
Z3	Select factory setting 0
Z4	Select factory setting 1

SPEAKER VOLUME
Type:	Configuration
Format:	AT [cmds] Ln [cmds]
Description:	Controls speaker volume
Command	Function
L0	Low volume setting
L1	Low volume setting
í L2	Medium volume setting
L3	Highest volume setting

TEST MODES
Type:	Immediate
Format:	AT [cmds] &Tn
Description:	Selects test options
Command	Function
&T0	TBD
&T1	TBD
&T2	TBD
&T3	TBD

INACTIVITY TIMER
Type:	Immediate
Format:	AT [cmds] #VIT=n [cmds]
Description:	Sets the inactivity timer

RECEIVE GAIN
Type:	Immediate
Format:	AT [cmds] #RG=n [cmds]
Description:	Sets the receive gainlevel

VOICE PARAMETERS
Type:	Immediate
Format:	AT [cmds] #VIP=n [cmds]
Description:	Initializes the voice parameters

ACTUAL MODULATION
Type:	Register
Format	AT [cmds] S37=n [cmds]
Description:	Returns the actual modulation speed

ACTUAL RX SPEED
Type:	Register
Format	AT [cmds] S38=n [cmds]
Description:	Returns the actual RX speed

ACTUAL SPEED
Type:	Register
Format:	AT [cmds] S35=n [cmds]
Description:	Sets the actual speed after connect

ADPCM
Type:		Register
Format:	AT [cmds] S76=n [cmds]
Default:	4
Range:	4, 8, 16
Description:	Controls the ADPCM bits per sample

ANSWER DELAY
Type:		Register
Format:	AT [cmds] S92=n [cmds]
Default:	2
Range:	0-255
Description:	Controls the answer delay

AUTO ANSWER
Format	AT [cmds] S27=n [cmds]
Default:	8
Range:	0-255
Unit:	1 second
Description:	Sets the auto answer clear timeout

AUTOMODE SELECT
Format:	AT [cmds] S31=n [cmds]
Default:	1
Range:	0-3
Description:	Sets automode

BEEP TONE TIMER
Type:		Register
Format:	AT [cmds] S77=n [cmds]
Default:	10
Range:	0-40
Description:	Sets the beep tone timer

BREAK LENGTH
Format	AT [cmds] S21=n [cmds]
Default:	9
Range:	0-9
Description:	Sets the break length

CD
Type:		Register
Format:	AT [cmds] S60=n [cmds]
Default:	1
Range:	0-1
Description:	Sets the CD setting

CID
Type:		Register
Format:	AT [cmds] S75=n [cmds]
Default:	0
Range:	0,1
Description:	Controls the CID

CIRCUIT 106
Type:		Register
Format:	AT [cmds] S66=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the circuit 106 (RTS)

CIRCUIT 107
Type:		Register
Format:	AT [cmds] S67=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the circuit 107 (DSR)

CIRCUIT 109
Type:		Register
Format:	AT [cmds] S68=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the circuit 109 (CD)

CONNECT MESSAGE
Type:		Register
Format:	AT [cmds] S70=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the CONNECT message format

CONNECT MESSAGE
Type:		Register
Format:	AT [cmds] S71=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the CONNECT message speed source

COUNTRY TYPE
Type:		Register
Format:	AT [cmds] S162=n [cmds]
Default:	1
Range:	0-25
Description:	Sets the country type

CURRENT SETTING
Type:		Register
Format:	AT [cmds] S59=n [cmds]
Default:	3
Range:	0-5
Description:	Sets the current setting

DATA PUMP STATUS
Type:	Register
Format	AT [cmds] S36=n [cmds]
Description:	Displays the current data pump status

DEFAULT SETTING
Type:		Register
Format:	AT [cmds] S161=n [cmds]
Default:	2
Range:	0-1
Description:	Sets the default setting

DSR
Type:		Register
Format:	AT [cmds] S64=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the DSR

DTMF HIGH GAIN
Type:		Register
Format:	AT [cmds] S156=n [cmds]
Default:	0
Range:	0-255
Description:	Sets the DTMF high gain level

DTMF LOW GAIN
Type:		Register
Format:	AT [cmds] S155=n [cmds]
Default:	0
Range:	0-255
Description:	Sets the DTMF low gain level

DTMF TONE
Type:		Register
Format:	AT [cmds] S84=n [cmds]
Default:	0
Range:	0-3F
Description:	Controls the DTMF tone reports cap 0

DTMF TONE
Type:		Register
Format:	AT [cmds] S85=n [cmds]
Default:	0
Range:	0-3F
Description:	Controls the DTMF tone reports cap 1

DTMF TONE
Type:		Register
Format:	AT [cmds] S86=n [cmds]
Default:	0
Range:	0-3F
Description:	Controls the DTMF tone reports cap 2

DTR
Type:		Register
Format:	AT [cmds] S63=n [cmds]
Default:	0
Range:	0-3
Description:	Sets the DTR

ECHO
Type:	Register
Format	AT [cmds] S13=n [cmds]
Default:	1
Range:	0-1
Description:	Sets the echo

EXTENDED CODE
Type:		Register
Format:	AT [cmds] S56=n [cmds]
Default:	4
Range:	0-4
Description:	Sets the extended code

FAE VALUE
Type:		Register
Format:	AT [cmds] S151=n [cmds]
Default:	0
Range:	0,1
Description:	Sets the FAE value

FCLASS VALUE
Type:		Register
Format:	AT [cmds] S150=n [cmds]
Default:	0
Range:	0,1,8
Description:	Sets the FCLASS value

FLASH TIMER
Type:	Register
Format	AT [cmds] S24=n [cmds]
Default:	20
Range:	0-255
Unit:	10 ms
Description:	Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode.

FLASH TIMER
Type:		Register
Format:	AT [cmds] S140=n [cmds]
Range:	0-255
Description:	Sets the duration of the flash timer

FLOW CONTROL
Type:		Register
Format:	AT [cmds] S62=n [cmds]
Default:	1
Range:	0-3
Description:	Sets the flow control

FLOW CONTROL CHARACTER - XOFF
Type:	Register
Format	AT [cmds] S23=n [cmds]
Default:	19
Range:	0-127
Description:	Sets the XOFF character

HANDSET GAIN
Type:		Register
Format:	AT [cmds] S72=n [cmds]
Default:	80
Range:	0-255
Description:	Sets the handset record gain control

HSET OUT GAIN
Type:		Register
Format:	AT [cmds] S154=n [cmds]
Range:	0-255
Description:	Sets the Hset out gain level

INACTIVITY TIMER
Type:	Register
Format	AT [cmds] S19=n [cmds]
Default:	0
Range:	0-255
Description:	Sets the system inactivity timer

LINE OUT GAIN
Type:		Register
Format:	AT [cmds] S152=n [cmds]
Range:	0-255
Description:	Sets the line out gain level

LINE QUALITY CONTROL
Type:	Register
Format	AT [cmds] S39? [cmds]
Range:	0-2
Default:	2
Description:	Displays the line quality control

LINE RECORD GAIN
Type:		Register
Format:	AT [cmds] S139=n [cmds]
Range:	0-255
Description:	Sets the line record gain level

LINE SELECTION DURATION
Type:		Register
Format:	AT [cmds] S78=n [cmds]
Default:	0
Description:	Sets the line selection duration

MAX SPEED
Type:	Register
Format:	AT [cmds] S34=n [cmds]
Description:	Sets the requested MAX speed

MICROPHONE
Type:		Register
Format:	AT [cmds] S90=n [cmds]
Default:	1
Range:	0-3
Description:	Sets the microphone

MICROPHONE GAIN
Type:		Register
Format:	AT [cmds] S138=n [cmds]
Range:	0-255
Description:	Sets the microphone gain level

MIN SPEED
Type:	Register
Format:	AT [cmds] S33=n [cmds]
Description:	Sets the requested MIN speed

ORIGIN/ANSWER
Type:	Register
Format	AT [cmds] S22=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the origin/answer

PLAYBACK
Type:		Register
Format:	AT [cmds] S74=n [cmds]
Default:	153
Range:	0-255
Description:	Sets the playback volume

PROCESSOR TYPE
Type:		Register
Format:	AT [cmds] S193=n [cmds]
Default:	0
Range:	0-100
Description:	Sets the processor type

PULSE MAKE RATIO
Type:		Register
Format:	AT [cmds] S146=n [cmds]
Default:	39
Range:	0-100
Description:	Sets the pulse make ratio

PULSE PAUSE
Type:		Register
Format:	AT [cmds] S148=n [cmds]
Default:	80
Range:	0-255
Description:	Sets the pulse pause

PULSE PPS
Type:		Register
Format:	AT [cmds] S147=n [cmds]
Default:	10
Range:	10, 20
Description:	Sets the pulse PPS

PULSE REFRESH
Type:		Register
Format:	AT [cmds] S149=n [cmds]
Default:	0
Range:	0-100
Description:	Sets the pulse refresh

PULSE SET?BREAK RATIO
Format	AT [cmds] S28=n [cmds]
Default:	0
Range:	0-4
Description:	Sets the pulse set/break ratio

PULSE TONE
Type:	Register
Format:	AT [cmds] S16=n [cmds]
Default:	1
Range:	0-1
Description:	Sets the pulse tone

QUIET
Type:	Register
Format	AT [cmds] S14=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the quiet function

RECEIVED SIGNAL LEVEL
Format	AT [cmds] S41=n [cmds]
Description:	Displays the received signal level

REQUESTED MODULATION
Format:	AT [cmds] S32=n [cmds]
Default:	8
Range:	Unidentified
Description:	Sets requested modulation

RESULT CODES
Type:		Register
Format:	AT [cmds] S43=n [cmds]
Description:	Controls the result codes

RING GOES AWAY TIMER
Type:		Register
Format:	AT [cmds] S79=n [cmds]
Default:	70
Range:	0-255
Description:	Sets the ring goes away timer

RING NEVER CAME TIMER
Type:		Register
Format:	AT [cmds] S80=n [cmds]
Default:	70
Range:	0-255
Description:	Sets the ring never came timer

RTS
Type:		Register
Format:	AT [cmds] S61=n [cmds]
Default:	0
Range:	0-1
Description:	Sets the RTS

SIGNAL TO NOISE RATIO
Type:		Register
Format:	AT [cmds] S42=n [cmds]
Description:	Controls the signal to noise ratio setting.

SILENCE DETECT
Type:		Register
Format:	AT [cmds] S81=n [cmds]
Default:	0
Range:	0, 1
Description:	Enables and disables the silence detection

SILENCE DETECTION
Type:		Register
Format:	AT [cmds] S82=n [cmds]
Default:	2
Range:	0-3
Unit:	0.1 second
Description:	Controls the silence detection sensitivity

SILENCE DETECTION
Type:		Register
Format:	AT [cmds] S83=n [cmds]
Default:	55
Range:	0-255
Description:	Controls the silence detection duration

SPEAKER
Type:		Register
Format:	AT [cmds] S89=n [cmds]
Default:	5
Range:	0-15
Description:	Sets the speaker

SPEAKER CONTROL
Type:	Register
Format	AT [cmds] S29=n [cmds]
Default:	1
Range:	0-3
Description:	Sets the speaker control

SPEAKER MUTE
Type:		Register
Format:	AT [cmds] S88=n [cmds]
Default:	1
Range:	0-2
Description:	Sets the speaker mute

SPEAKER OUT GAIN
Type:		Register
Format:	AT [cmds] S153=n [cmds]
Range:	0-255
Description:	Sets the speaker out gain level

SPEAKER VOLUME
Type:	Register
Format	AT [cmds] S30=n [cmds]
Default:	2
Range:	0-3
Description:	Sets the speaker volume

TIME MARK
Type:		Register
Format:	AT [cmds] S87=n [cmds]
Default:	0
Range:	0-255
Description:	Controls the time mark placement

TRANSMIT LEVEL GAIN
Type:		Register
Format:	AT [cmds] S45=n [cmds]
Default:	3
Range:	0-10
Description:	Controls the result codes

VERBOSE
Type:	Register
Format	AT [cmds] S15=n [cmds]
Default:	1
Range:	0-1
Description:	Sets the verbose function

VOICE SAMPLE
Type:		Register
Format:	AT [cmds] S91=n [cmds]
Default:	0
Range:	1,2
Description:	Sets the voice sample rate
